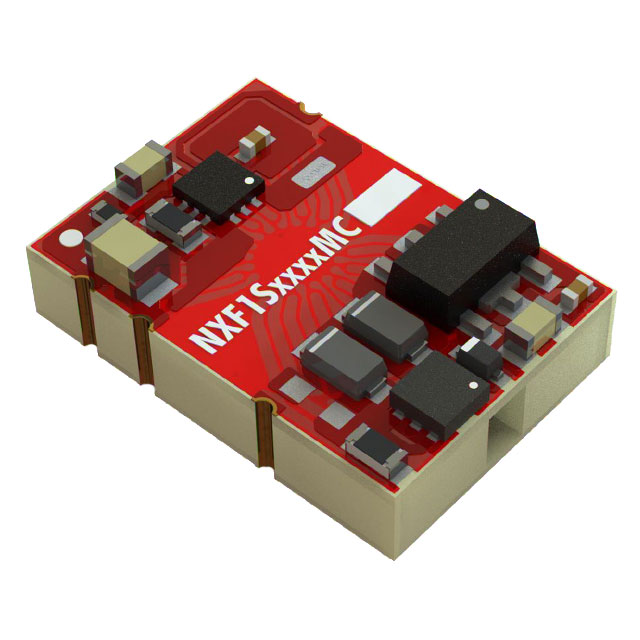

NXF1S0303MC-R13
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, 1:1, 1 W, 1 OUTPUT, 3.3 V
Deep-Dive with AI
Search across all available documentation for this part.
NXF1S0303MC-R13
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, 1:1, 1 W, 1 OUTPUT, 3.3 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NXF1S0303MC-R13 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 303 mA |
| Efficiency | 59 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads |
| Package / Case [Max] | 14-SMD Module |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [y] | 10.7 mm |
| Size / Dimension [y] | 0.42 " |
| Size / Dimension [z] | 4.8 mm |
| Size / Dimension [z] | 0.19 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 3.465 V |
| Voltage - Input (Min) [Min] | 3.135 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NXF1S03 Series
Isolated Module DC DC Converter 1 Output 3.3V 303mA 3.135V - 3.465V Input
