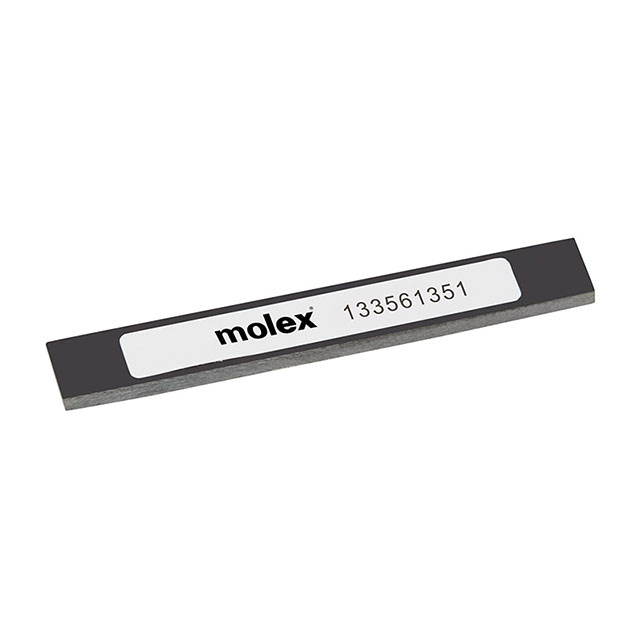

0133561351

Obsolete

Molex

RFID SOLUTIONS, 2.4 TO 2.7M READ

Search across all available documentation for this part.

Obsolete

Molex

RFID SOLUTIONS, 2.4 TO 2.7M READ

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Writable Memory	Technology	Memory Type	Frequency [Min]	Frequency [Max]	Size / Dimension [x]	Size / Dimension [y]	Style	Standards	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Molex 0133561431
Molex 0133561351	85 °C	-50 °C	96 b 512 b	Passive	Read Only	902 MHz	928 MHz	1.81 in 45.97 mm	0.3 " 7.62 mm	Encapsulated
Molex 0133561151	85 °C	-40 °C	96 b	Passive	Read Only	902 MHz	928 MHz			Encapsulated	EPC ISO 18000-6C
Molex 0133561401	85 °C	-50 °C	64 b 128 b	Passive	Read Only	902 MHz	928 MHz	10.8 mm	5.8 mm	Encapsulated		0.425 in	0.228 in
Molex 0133560571	85 °C	-50 °C	96 b 512 b	Passive	Read Only	902 MHz	928 MHz	67.6 mm		Encapsulated	EPC ISO 18000-6C	2.661 in	1.031 in	26.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RFID Tag Read Only 96b (EPC), 512b (User) Memory 902MHz ~ 928MHz Encapsulated
