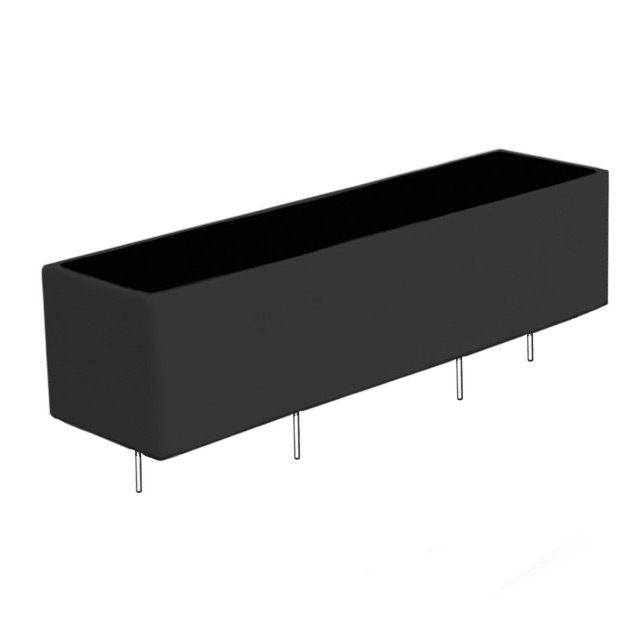

3351-4275-056
ActiveComputer Components Inc
RELAY REED HV SPST-NC 50W 3A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3351-4275-056
ActiveComputer Components Inc
RELAY REED HV SPST-NC 50W 3A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3351-4275-056 |
|---|---|
| Coil Current | 125 mA |
| Coil Resistance | 40 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Rating (Current) | 3 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 3 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 3 ms |
| Switching Voltage [Max] | 7500 VAC, 7500 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.05 | |
| 10 | $ 47.24 | |||
| 25 | $ 45.11 | |||
| 50 | $ 43.56 | |||
| 100 | $ 42.06 | |||
Description
General part information
3351-4275 Series
RELAY REED HV SPST-NC 50W 3A 5V
Documents
Technical documentation and resources
