8020.0603.PT

Active

SCHURTER Inc.

FUSE CERAMIC 12A 250VAC 3AB 3AG

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CERAMIC 12A 250VAC 3AB 3AG

Technical Specifications

Parameters and characteristics for this part

Specification	8020.0603.PT

Breaking Capacity @ Rated Voltage	500 A
Current Rating (Amps)	12 A
DC Cold Resistance	0.0056 Ohms
Fuse Type	Cartridge, Ceramic
Melting I²t	72 I²t
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3AG, 3AB
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Slow Blow
Size / Dimension [diameter]	0.27 in
Size / Dimension [diameter]	6.85 mm
Size / Dimension [x]	1.291 "
Size / Dimension [x]	32.8 mm
Voltage Rating - AC	250 V

Part	Fuse Type	DC Cold Resistance	Package / Case	Package / Case [y]	Package / Case [x]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Melting I˛t	Breaking Capacity @ Rated Voltage	Mounting Type	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Response Time	Melting I²t	Size / Dimension [x]	Size / Dimension [x]
SCHURTER Inc. 8020.0603.G	Cartridge Ceramic	0.0056 Ohms	3AB 3AG	1-1/4	1/4	250 V	85 °C	-40 °C	72	500 A	Requires Holder	12 A	1.252 in	31.8 mm	6.35 mm	0.25 in	Slow Blow
SCHURTER Inc. 8020.0603.PT	Cartridge Ceramic	0.0056 Ohms	3AB 3AG	1-1/4	1/4	250 V	85 °C	-40 °C		500 A	Through Hole	12 A			6.85 mm	0.27 in	Slow Blow	72 I²t	1.291 "	32.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

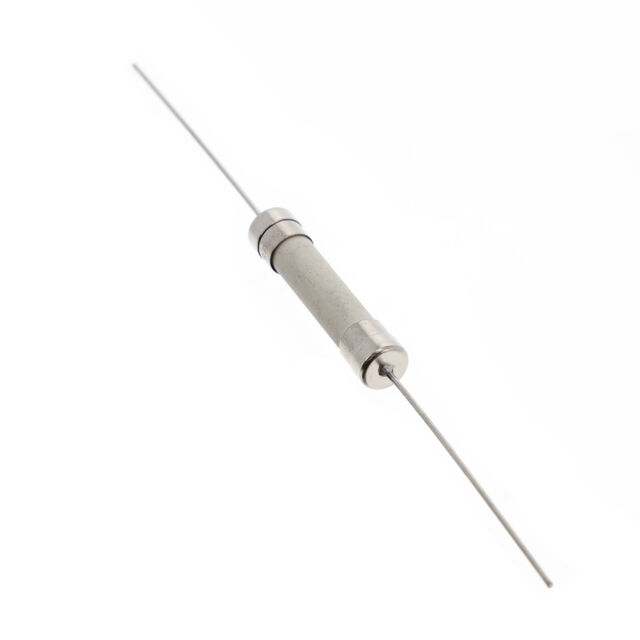

12 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
