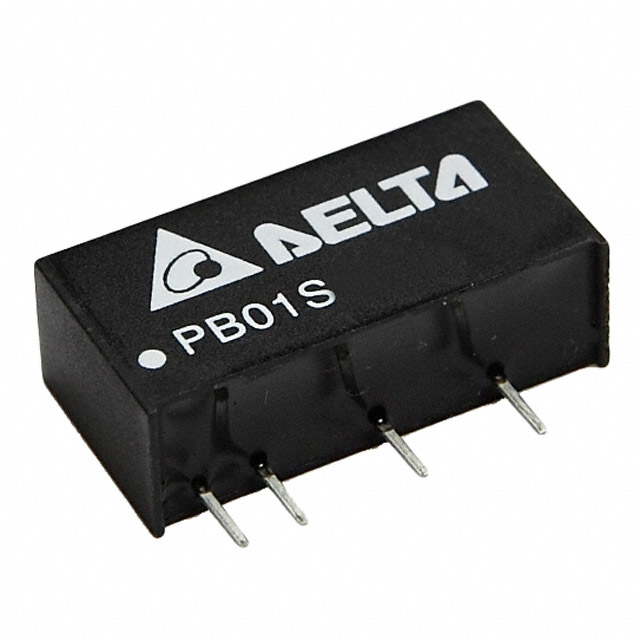

PB01S1212A

Active

Delta Electronics

DC DC CONVERTER 12V 1W

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 12V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Applications	Package / Case	Voltage - Output 1	Type	Features	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]
Delta Electronics PB01S2405A	71 %	Medical	5-SIP Module	5 V	Isolated Module	SCP	21.6 V	1	1000 V	10.2 mm	0.4 "	19.6 mm	0.77 in	0.24 "	6 mm	26.4 V	Through Hole	85 °C	-40 °C	200 mA
Delta Electronics PB01S1212A	80 %	Medical	5-SIP Module	12 V	Isolated Module	SCP	10.8 V	1	1000 V	10.2 mm	0.4 "	19.6 mm	0.77 in	0.24 "	6 mm	13.2 V	Through Hole	85 °C	-40 °C	84 mA
Delta Electronics PB01S0503A	73 %	Medical	5-SIP Module	3.3 V	Isolated Module	SCP	4.5 V	1	1000 V	10.2 mm	0.4 "	19.6 mm	0.77 in	0.24 "	6 mm	5.5 V	Through Hole	85 °C	-40 °C	260 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 4.71

General part information

Isolated Module DC DC Converter 1 Output 12V 84mA 10.8V - 13.2V Input
