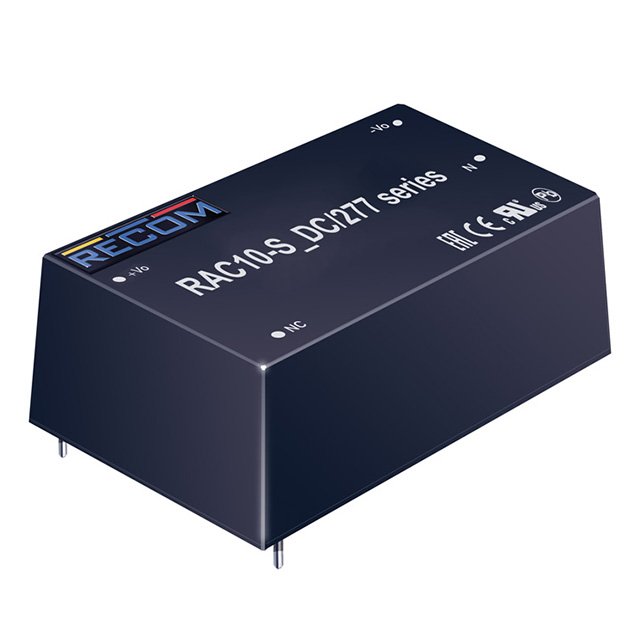

RAC10-24SC/277

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 10 W, 24 V, 420 MA

Search across all available documentation for this part.

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 10 W, 24 V, 420 MA

Technical Specifications

Parameters and characteristics for this part

AC/DC Power Modules 10W90-305VIN 15V THT

Part	Voltage - Output 1	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Features	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Standard Number	Mounting Type	Line Regulation	Type	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Load Regulation	Weight	Weight	Package / Case
RECOM Power RAC10-24SC/277	24 V	ITE (Commercial)	80 VAC	305 VAC	Universal Input	1	10 W	420 mA	60950-1	Through Hole	0.3 %	Enclosed	CE cULus	0.93 in	2.07 "	23.5 mm	27.4 mm	52.5 mm	1.08 in	-20 °C	70 °C	80 %	0.5 %	62.14 g	0.137 lb	4-DIP Module
RECOM Power RAC10-24SK/277	24 V	Household Appliances ITE (Commercial)	80 VAC	305 VAC	Universal Input	1	10 W	420 mA		Through Hole	0.5 %	Enclosed	CE cURus	0.93 in	2.07 "	23.5 mm	27.4 mm	52.5 mm	1.08 in	-40 °C	80 ¯C	84 %	1 %			4-DIP Module
RECOM Power RAC10-15SC/277	15 V	ITE (Commercial)	80 VAC	305 VAC	Universal Input	1	10 W	670 mA	60950-1	Through Hole	0.3 %	Enclosed	CE cULus	0.93 in	2.07 "	23.5 mm	27.4 mm	52.5 mm	1.08 in	-20 °C	70 °C	78 %	0.5 %	62.14 g	0.137 lb	4-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC Power Modules 10W90-305VIN 15V THT
