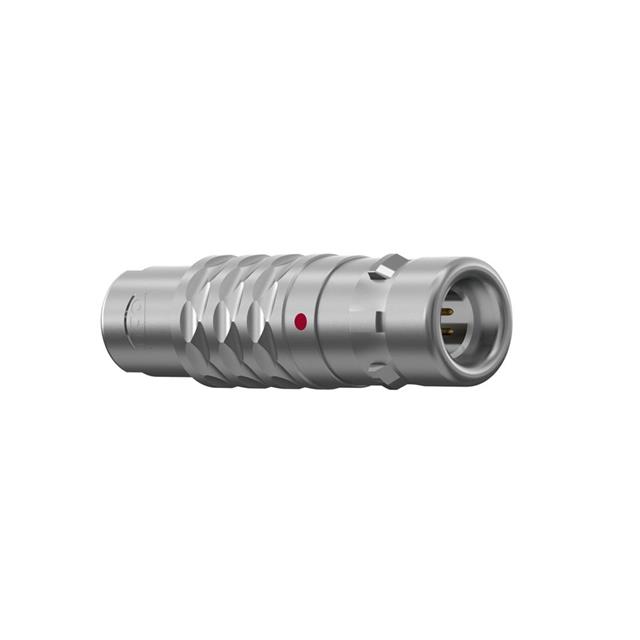

A10K0C-P05MFG0-4000

Active

ODU

ODU MINI-SNAP PLUG, STY 1, SZ 0,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A10K0C-P05MFG0-4000

Active

ODU

ODU MINI-SNAP PLUG, STY 1, SZ 0,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A10K0C-P05MFG0-4000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.157 in
Cable Opening [Max] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.138 in
Cable Opening [Min] [diameter]	3.5 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Voltage Rating	200 V

A10K0C-P Series

Part	Shielding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Material	Insert Material	Number of Positions	Ingress Protection	Voltage Rating	Shell Finish	Applications	Contact Finish - Mating	Primary Material	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Backshell Material, Plating	Current Rating (Amps)	Color	Mounting Type	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
ODU A10K0C-P04MFG0-5000	Shielded	Male Pins Plug	-40 °C	120 °C	Backshell	Brass	Polyetheretherketone (PEEK)	4	IP68 - Dust Tight Waterproof	300 VDC	Chrome over Nickel	Industrial Medical Military Testing Equipment & Measurement	Gold	Metal	Push-Pull	0.197 in	0.177 in	5 mm	4.5 mm	Brass Chrome over Nickel	7.5 A	Silver	Free Hanging (In-Line)	Brass
ODU A10K0C-P04MFG0-3500	Shielded	Male Pins Plug	-40 °C	120 °C	Backshell	Brass	Polyetheretherketone (PEEK)	4	IP68 - Dust Tight Waterproof	300 VDC	Chrome over Nickel	Industrial Medical Military Testing Equipment & Measurement	Gold	Metal	Push-Pull	0.138 in	0.118 in		3 mm	Brass Chrome over Nickel	7.5 A	Silver	Free Hanging (In-Line)	Brass	3.5 mm
ODU A10K0C-P10MCC9-4500	Shielded	Male Pins Plug	-40 °C	120 °C	Backshell	Brass	Polyetheretherketone (PEEK)	10	IP68 - Dust Tight Waterproof	200 V	Chrome over Nickel	Industrial Medical Military Testing Equipment & Measurement	Gold	Metal	Push-Pull					Brass Chrome over Nickel	4 A	Silver	Free Hanging (In-Line)	Brass		4.5 mm	0.157 in	0.177 in	4 mm
ODU A10K0C-P05MFG0-4000	Shielded	Male Pins Plug	-40 °C	120 °C	Backshell	Brass	Polyetheretherketone (PEEK)		IP68 - Dust Tight Waterproof	200 V	Chrome over Nickel	Industrial Medical Military Testing Equipment & Measurement	Gold	Metal	Push-Pull	0.157 in	0.138 in		3.5 mm	Brass Chrome over Nickel	7.5 A	Silver	Free Hanging (In-Line)	Brass	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.02

Description

General part information

A10K0C-P Series

5 Position Circular Connector Plug, Male Pins Solder Cup
