XMC4400F64F256BAXQMA1

Active

Infineon Technologies

IC MCU 32BIT 256KB FLASH 100LQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XMC4400F64F256BAXQMA1

Active

Infineon Technologies

IC MCU 32BIT 256KB FLASH 100LQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XMC4400F64F256BAXQMA1

Connectivity	CANbus, USB, LINbus, I2C, UART, SPI, Ethernet
Core Processor	ARM® Cortex®-M4
Core Size	32-Bit Single-Core
Data Converters [custom]	12, 12
Data Converters [custom]	14, 2
Mounting Type	Surface Mount
Number of I/O	31
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

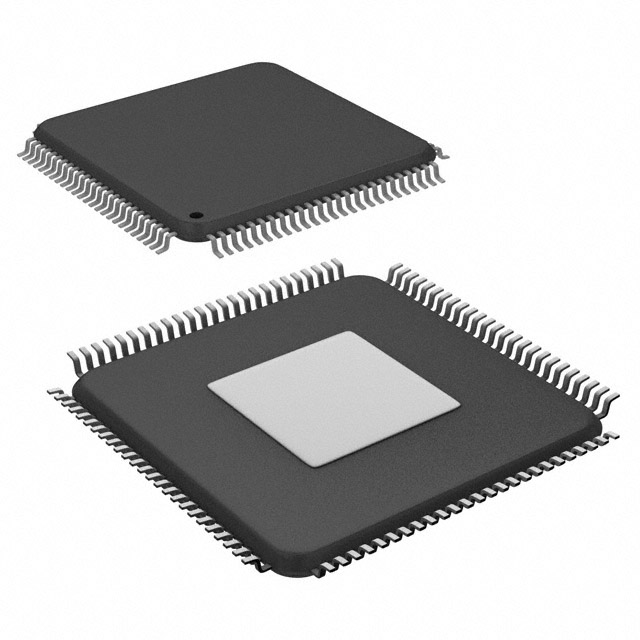

Package / Case	100-LQFP Exposed Pad
Program Memory Size	256 KB
Program Memory Type	FLASH
RAM Size	80 K
Speed	120 MHz
Supplier Device Package	PG-LQFP-100-25
Voltage - Supply (Vcc/Vdd) [Max]	3.63 V
Voltage - Supply (Vcc/Vdd) [Min]	3.13 V

XMC4400 Series

Part	Speed	Oscillator Type	Mounting Type	Data Converters [custom]	Data Converters [custom]	Core Processor	Connectivity	RAM Size	Program Memory Type	Package / Case	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Core Size	Number of I/O	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
Infineon Technologies XMC4400F64F256BAXQMA1	120 MHz	Internal	Surface Mount	12 12	2 14	ARM® Cortex®-M4	CANbus Ethernet I2C LINbus SPI UART USB	80 K	FLASH	100-LQFP Exposed Pad	256 KB	85 °C	-40 °C	PG-LQFP-100-25	32-Bit Single-Core	31	3.13 V	3.63 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.08
		10	$ 10.01
		25	$ 9.55
		160	$ 8.29
		320	$ 7.92
		480	$ 7.22
		960	$ 6.29

Description

General part information

XMC4400 Series

XMC4400 combines Infineon's leading-edge peripheral set with an industry-standardARM® Cortex™-M4. As one of its key features it offers a high-resolution PWM unit with a tiny resolution of 150ps. This unique peripheral makes it especially suitable for digital power conversion in applications like solar inverters as well as SMPS and uninterruptible power supplies (UPS). Other applications are motor controllers, sense&control and IO devices for factory automation and user interface systems (HMI). XMC4400 is supported by Infineon’s integrated development platform DAVE™ 3, which makes convenient, fast and application-orientated software development possible.

Documents

Technical documentation and resources
