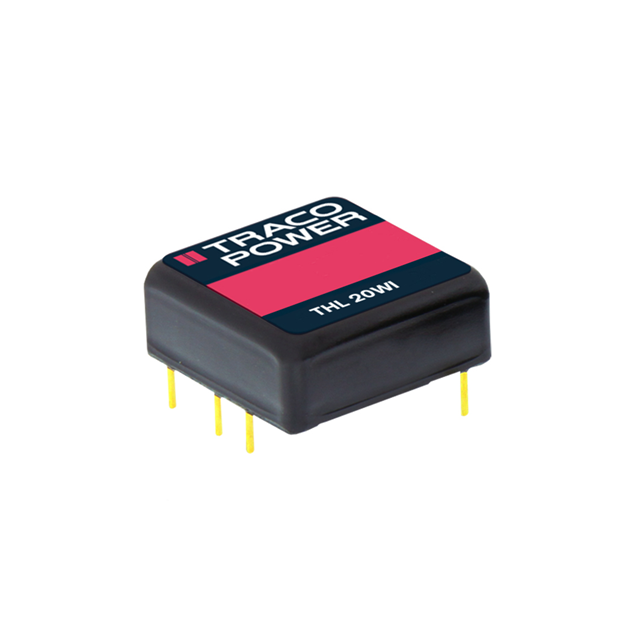

THL 20-4815WI
Traco Power
DC DC CONVERTER 24V 20W
Deep-Dive with AI
Search across all available documentation for this part.
THL 20-4815WI
Traco Power
DC DC CONVERTER 24V 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | THL 20-4815WI |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 835 mA |
| Efficiency | 88 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 59.70 | |
| 10 | $ 51.09 | |||
| 25 | $ 49.41 | |||
| 50 | $ 48.17 | |||
| 100 | $ 46.96 | |||
| 250 | $ 41.10 | |||
Description
General part information
THL 20 Series
Isolated Module DC DC Converter 1 Output 24V 835mA 18V - 75V Input
