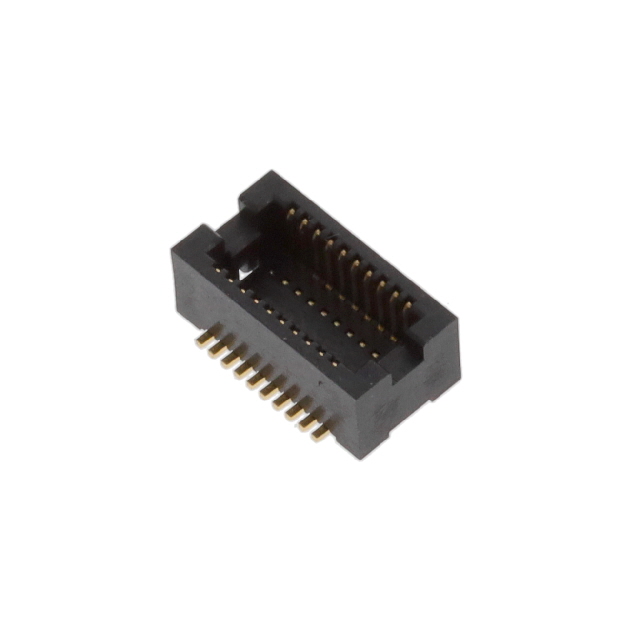

DF12NC(5.0)-20DP-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF12NC(5.0)-20DP-0.5V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Height Above Board	Height Above Board	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Mated Stacking Heights
Hirose Electric USA, Inc. DF12NC(5.0)-30DP-0.5V(51)	2	0.169 in	4.3 mm	30	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	8 çin	0.203 çm	Surface Mount	5 mm
Hirose Electric USA, Inc. DF12NC(5.0)-60DP-0.5V(51)	2	0.169 in	4.3 mm	60	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	8 çin	0.203 çm	Surface Mount	5 mm
Hirose Electric USA, Inc. DF12NC(5.0)-20DP-0.5V(51)	2	0.169 in	4.3 mm	20	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	8 çin	0.203 çm	Surface Mount	5 mm
Hirose Electric USA, Inc. DF12NC(5.0)-40DP-0.5V(51)	2	0.169 in	4.3 mm	40	Gold	0.5 mm	0.02 in	Header Outer Shroud Contacts	8 çin	0.203 çm	Surface Mount	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
