TC7SPN3125TU,LF
ActiveToshiba Semiconductor and Storage
IC TRANSLTR UNIDIRECTIONAL UF6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC7SPN3125TU,LF
ActiveToshiba Semiconductor and Storage
IC TRANSLTR UNIDIRECTIONAL UF6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC7SPN3125TU,LF |
|---|---|
| Channel Type | Unidirectional |
| Channels per Circuit | 1 |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Tri-State, Non-Inverted |

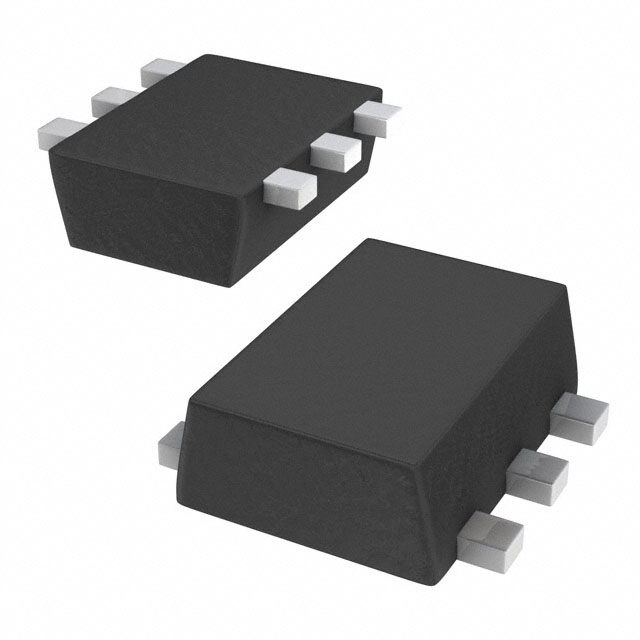

| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | UF6 |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 2.7 V |
| Voltage - VCCA [Min] | 1.1 V |
| Voltage - VCCB [Max] | 3.6 V |
| Voltage - VCCB [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TC7SPN3125 Series
Voltage Level Translator Unidirectional 1 Circuit 1 Channel UF6
Documents
Technical documentation and resources
