MBT8S

Active

HELLERMANNTYTON

CABLE TIE, PK 100, 316 GRADE, STAINLESS STEEL, NATURAL, 201 MM, 4.6 MM, 50 MM, 202 LB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

MBT8S

Active

HELLERMANNTYTON

CABLE TIE, PK 100, 316 GRADE, STAINLESS STEEL, NATURAL, 201 MM, 4.6 MM, 50 MM, 202 LB

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MBT8S

Bundle Diameter	50 mm
Bundle Diameter	1.97 in
Color	Silver
Length - Actual	7.91 "
Length - Actual	201 mm
Length - Actual	0.659 '
Length - Approximate	8 in
Material	Stainless Steel 316
Mounting Type	Free Hanging (In-Line)
Tensile Strength	200 lbs
Tensile Strength	90.72 kg
Width [y]	0.181 in
Width [y]	4.6 mm
Wire/Cable Tie Type	Standard, Locking

MBT8 Series

Part	Bundle Diameter	Bundle Diameter	Wire/Cable Tie Type	Material	Width [x]	Width [x]	Color	Length - Approximate	Tensile Strength	Tensile Strength	Mounting Type	Length - Actual	Length - Actual	Length - Actual	Width [y]	Width [y]
HELLERMANNTYTON MBT8H-S	50 mm	1.97 in	Locking Standard	Stainless Steel 304	0.311 "	7.9 mm	Silver	8 in	450 lbs	204.12 kg	Free Hanging (In-Line)	7.91 "	201 mm	0.659 '
HELLERMANNTYTON MBT8S	50 mm	1.97 in	Locking Standard	Stainless Steel 316			Silver	8 in	200 lbs	90.72 kg	Free Hanging (In-Line)	7.91 "	201 mm	0.659 '	0.181 in	4.6 mm
HELLERMANNTYTON MBT8S-S	50 mm	1.97 in	Locking Standard	Stainless Steel 304			Silver	8 in	200 lbs	90.72 kg	Free Hanging (In-Line)	7.91 "	201 mm	0.659 '	0.181 in	4.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 0.95
		300	$ 0.86
		500	$ 0.78
		1000	$ 0.69
		2500	$ 0.63
		5000	$ 0.60
		10000	$ 0.57
Newark	Pack of 100	1	$ 87.75
		5	$ 80.55
		10	$ 68.40
		25	$ 64.35
		50	$ 60.75
		100	$ 59.40

Description

General part information

MBT8 Series

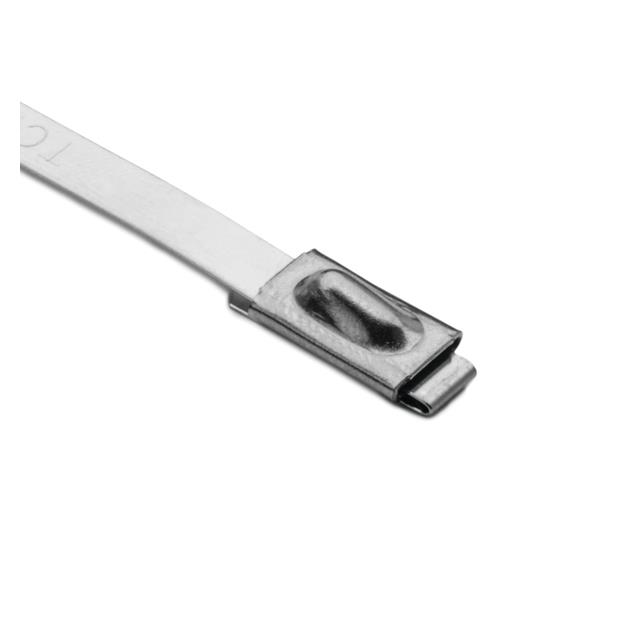

The MBT8S is a ball-lock Cable Tie made of stainless steel. The MBT (metal ball bearing tie) has a non-releasable locking mechanism that offers infinite adjustment along the length of the tie. It is suitable for use in the most arduous conditions or where additional strength, fire resistance and chemical resistance properties. It can be applied using MK9SST and KST-STG200 tools.

Documents

Technical documentation and resources
