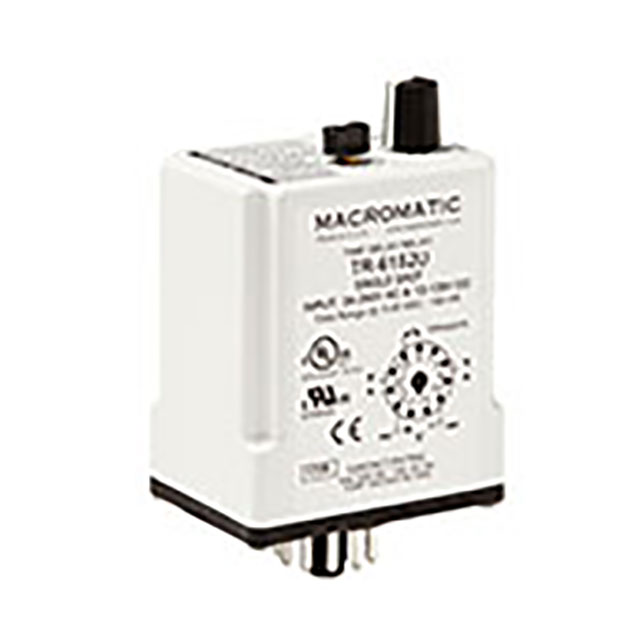

TR-6152U

Active

Macromatic Industrial Controls

RELAY TIME DELAY 100HR 10A 240V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY TIME DELAY 100HR 10A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	TR-6152U

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	240 VAC, 30 VDC, 10 A
Delay Time [Max]	100 Hrs
Delay Time [Min]	0.05 Sec
Function	One Shot
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 11 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC, 125 VDC
Voltage - Supply [Min]	24 VAC, 12 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Delay Time [Max]	Delay Time [Min]	Relay Type	Mounting Type	Circuit	Contact Rating @ Voltage	Termination Style	Timing Adjustment Method	Timing Initiate Method	Function
Macromatic Industrial Controls TR-6152U	125 VDC 240 VAC	12 V 24 VAC	100 Hrs	0.05 Sec	Mechanical Relay	Socketable	DPDT (2 Form C)	10 A 30 VDC 240 VAC	Plug In 11 Pin (Octal)	Hand Dial	Input Voltage Trigger Signal	One Shot

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 94.31

General part information

One Shot Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 10A @ 240VAC/30VDC Socketable

Technical documentation and resources

No documents available
