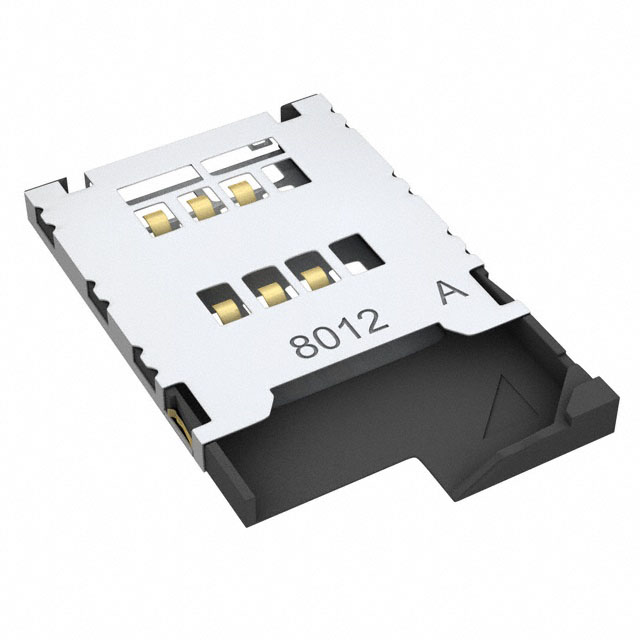

SF8V006S4AR1200
ActiveJAE Electronics
CONN SIM CARD PUSH-PULL R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
SF8V006S4AR1200
ActiveJAE Electronics
CONN SIM CARD PUSH-PULL R/A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SF8V006S4AR1200 |
|---|---|
| Card Type | SIM Card |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Height Above Board [z] | 0.061 " |
| Height Above Board [z] | 1.55 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.09 | |
| 10 | $ 5.50 | |||
| 25 | $ 5.20 | |||
| 50 | $ 5.07 | |||
| 100 | $ 4.82 | |||
| 250 | $ 4.31 | |||
| 500 | $ 4.06 | |||
| Digi-Reel® | 1 | $ 6.09 | ||
| 10 | $ 5.50 | |||
| 25 | $ 5.20 | |||
| 50 | $ 5.07 | |||
| 100 | $ 4.82 | |||
| 250 | $ 4.31 | |||
| 500 | $ 4.06 | |||
| Tape & Reel (TR) | 1200 | $ 3.55 | ||
| 2400 | $ 3.37 | |||
Description
General part information
SF8V006 Series
6 Position Card Connector SIM Card Surface Mount, Right Angle Gold
