1454M

Active

Hammond Manufacturing

BOX STEEL BLK/GRY 4"L X 3.25"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL BLK/GRY 4"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Part	Container Type	Height [z]	Height [z]	Material	Thickness	Design	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Weight	Weight	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1454E	Box	50.8 mm	2 in	Metal Steel	20	U Shaped Pieces	21 in²	135 cm²	133.35 mm	101.6 mm	4 "	5.25 "
Hammond Manufacturing 1454J	Box	101.6 mm	101.6 mm	Metal Steel	20	U Shaped Pieces	13 in²	84 cm²	101.6 mm	82.55 mm	3.25 "	4 in
Hammond Manufacturing 1454C	Box	50.8 mm	2 in	Metal Steel	20	U Shaped Pieces	11 in²	71 cm²	101.6 mm	69.85 mm	69.85 mm	4 in
Hammond Manufacturing 1454L	Box	101.6 mm	101.6 mm	Metal Steel	20	U Shaped Pieces	31.3 in²	202 cm²	158.75 mm	127 mm	5 "	6.25 "
Hammond Manufacturing 1454F	Box	76.2 mm	3 in	Metal Steel	20	U Shaped Pieces	25 in²	161 cm²	158.75 mm	101.6 mm	4 "	6.25 "
Hammond Manufacturing 1454G	Box	50.8 mm	2 in	Metal Steel	20	U Shaped Pieces			152.4 mm	69.85 mm	69.85 mm	6 in
Hammond Manufacturing 1454P	Box	88.9 mm	3.5 in	Metal Steel	20	U Shaped Pieces			254 mm		133.35 mm	10 in	133.35 mm	52.5 in²	339 cm²
Hammond Manufacturing 1454M	Box	152.4 mm	6 in	Metal Steel	20	U Shaped Pieces	13 in²	84 cm²	101.6 mm	82.55 mm	3.25 "	4 in
Hammond Manufacturing 1454W	Box	76.2 mm	3 in	Metal Steel	20	U Shaped Pieces		632 cm²	12.25 "	203.2 mm	8 in	12.5 "				0.5 lbs	226.8 g	98 in²
Hammond Manufacturing 1454R	Box	190.5 mm	7.5 in	Metal Steel	20	U Shaped Pieces			133.35 mm	127 mm	5 "	5.25 "						26.3 in²	170 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

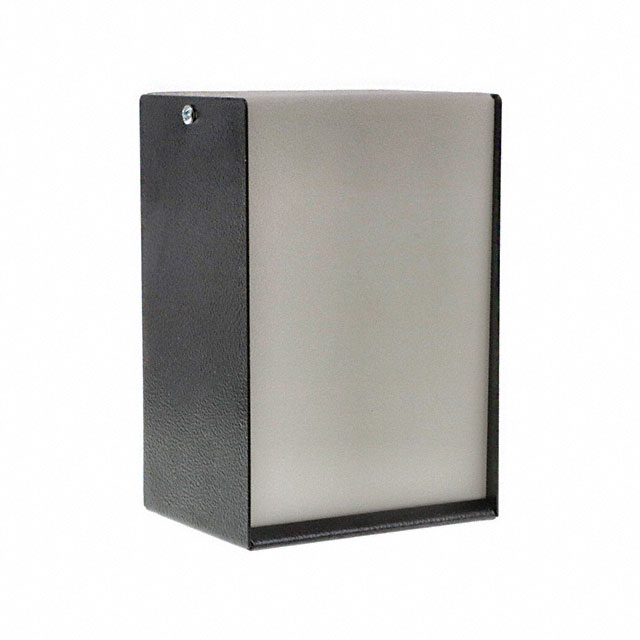

Box Metal, Steel Black, Gray U Shaped Pieces 4.000" L x 3.250" W (101.60mm x 82.55mm) X 6.000" (152.40mm)
