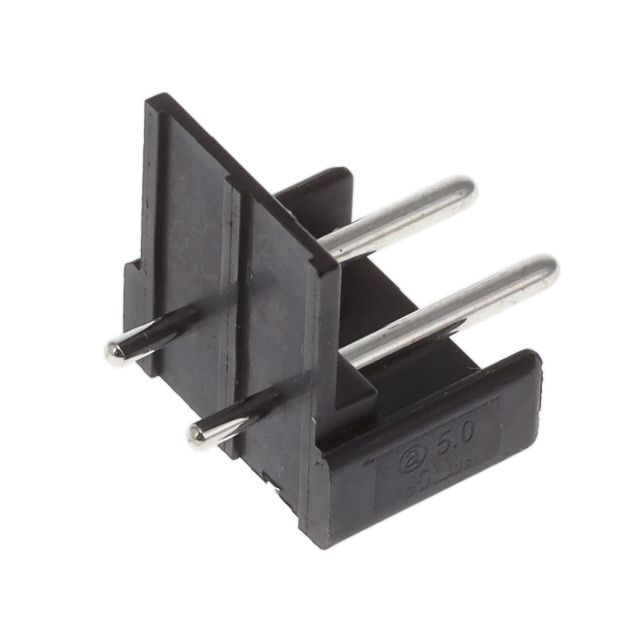

EX0200010000G

Active

Amphenol Anytek

EX 5.0 - 2P , NL66 , BRASS BRIGH

Search across all available documentation for this part.

Active

Amphenol Anytek

EX 5.0 - 2P , NL66 , BRASS BRIGH

Technical Specifications

Parameters and characteristics for this part

Specification	EX0200010000G

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.132 in
Contact Tail Length	3.35 mm
Current - UL	10 A
Header Orientation	Vertical
Housing Material	Thermoplastic
Insulation Height	9.5 mm
Insulation Height	0.374 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Termination Style	Solder
Type	Male Pins, Partial Shroud, Header
Voltage - UL	300 V

Part	Contact Mating Finish	Type	Number of Levels	Insulation Height	Insulation Height	Current - UL	Number of Positions	Mounting Type	Housing Material	Termination Style	Contact Material	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Color	Header Orientation	Contact Tail Length	Contact Tail Length	Voltage - UL	Material Flammability Rating	Pitch [x]	Pitch [x]
Amphenol Anytek EX020002A000G
Amphenol Anytek EX0200010000G	Tin	Header Male Pins Partial Shroud	1	9.5 mm	0.374 in	10 A	2	Through Hole	Thermoplastic	Solder	Brass	2	-40 °C	115 °C	Black	Vertical	0.132 in	3.35 mm	300 V	UL94 V-0	5 mm	0.197 in
Amphenol Anytek EX0200000000G		Header Male Pins Partial Shroud	1	9.5 mm	0.374 in	10 A	2	Through Hole	Thermoplastic	Solder	Brass	2	-40 °C	115 °C	Black	Vertical	0.134 in	3.4 mm	300 V	UL94 V-0	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Header, Male Pins, Partial Shroud 0.197" (5.00mm) Vertical Through Hole
