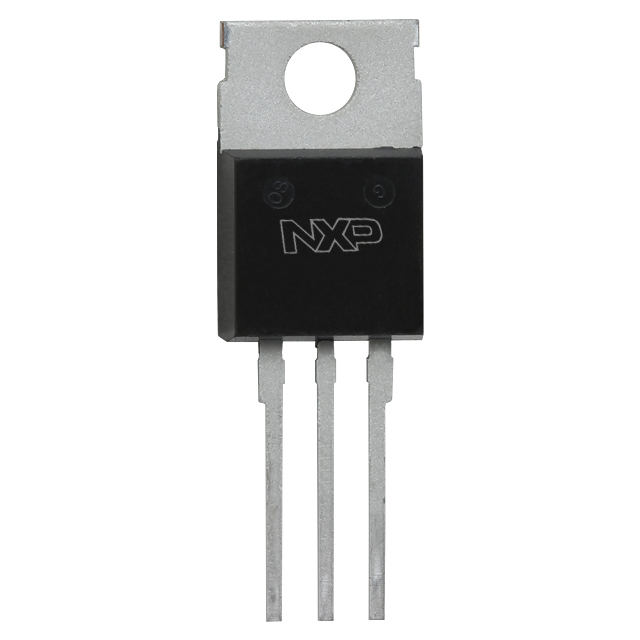

ACTT6-800E,127

Active

WeEn Semiconductors Co., Ltd

TRIAC 800V 56A 3-PIN(3+TAB) TO-220AB RAIL

Search across all available documentation for this part.

Active

WeEn Semiconductors Co., Ltd

TRIAC 800V 56A 3-PIN(3+TAB) TO-220AB RAIL

Technical Specifications

Parameters and characteristics for this part

Specification	ACTT6-800E,127

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	10 mA
Current - Hold (Ih) (Max) [Max]	25 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	56 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	51 A
Current - On State (It (RMS)) (Max)	6 A
Mounting Type	Through Hole
Operating Temperature	125 ¯C
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
Triac Type	Logic - Sensitive Gate
Voltage - Off State	800 V

Part	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature	Mounting Type	Current - Hold (Ih) (Max) [Max]	Triac Type	Current - On State (It (RMS)) (Max)	Supplier Device Package	Configuration	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]
WeEn Semiconductors Co., Ltd ACTT6X-800CNQ	TO-220-3 Full Pack Isolated Tab	66 A	1 V	35 mA	125 ¯C	Through Hole	40 mA	Logic - Sensitive Gate	6 A	TO-220F	Single	800 V
WeEn Semiconductors Co., Ltd ACTT6-800CNQ	TO-220-3	66 A	1 V	35 mA	125 ¯C	Through Hole	40 mA	Logic - Sensitive Gate	6 A	TO-220AB	Single	800 V
WeEn Semiconductors Co., Ltd ACTT6B-800CNJ	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	66 A	1 V	35 mA	125 ¯C	Surface Mount	40 mA	Logic - Sensitive Gate	6 A	D2PAK	Single	800 V
WeEn Semiconductors Co., Ltd ACTT6X-800E,127	TO-220-3 Full Pack Isolated Tab		1 V	10 mA	125 ¯C	Through Hole	25 mA	Logic - Sensitive Gate	6 A	TO-220F	Single	800 V	56 A	51 A
WeEn Semiconductors Co., Ltd ACTT6-800E,127	TO-220-3			10 mA	125 ¯C	Through Hole	25 mA	Logic - Sensitive Gate	6 A	TO-220AB	Single	800 V	56 A	51 A
WeEn Semiconductors Co., Ltd ACTT6B-800E,118	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB		1.5 V	10 mA	125 ¯C	Surface Mount	25 mA	Logic - Sensitive Gate	6 A	D2PAK	Single	800 V	56 A	51 A
WeEn Semiconductors Co., Ltd ACTT6G-800E,127	I2PAK TO-262-3 Long Leads TO-262AA		1 V	10 mA	125 ¯C	Through Hole	25 mA	Logic - Sensitive Gate	6 A	TO-262 (I2PAK)	Single	800 V	56 A	51 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6000	$ 0.31

General part information

TRIAC Logic - Sensitive Gate 800 V 6 A Through Hole TO-220AB
