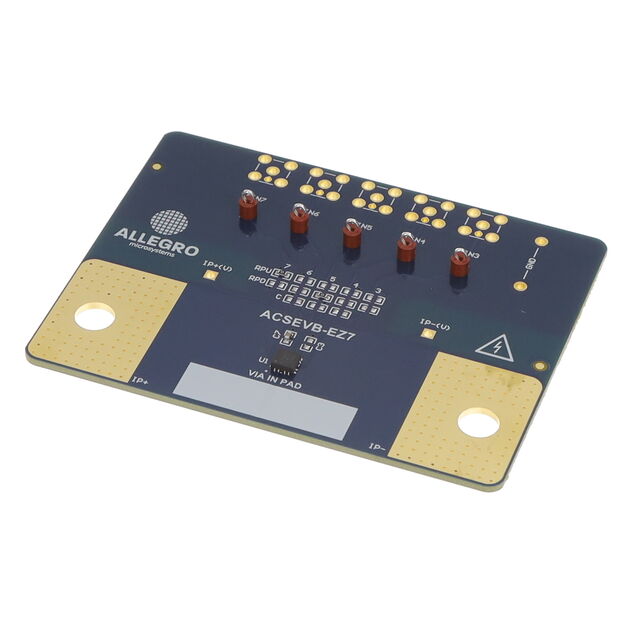

ACSEVB-EZ7-37220-150B3
ActiveAllegro MicroSystems
EVAL BOARD FOR ACS37220 150B3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACSEVB-EZ7-37220-150B3
ActiveAllegro MicroSystems
EVAL BOARD FOR ACS37220 150B3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACSEVB-EZ7-37220-150B3 |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Interface | Analog |
| Sensing Range [Max] | 150 A |
| Sensing Range [Min] | -150 A |
| Sensitivity | 8.8 mV/A |
| Sensor Type | Current Sensor |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ACS37220 |
| Voltage - Supply | 3.3 V |
ACS37220 Series
| Part | Sensor Type | Supplied Contents | Sensitivity | Embedded | Sensing Range | Interface | Utilized IC / Part | Sensing Range [Min] | Sensing Range [Max] | Voltage - Supply | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|
Allegro MicroSystems | Current Sensor | Board(s) | 20 mV/mT | 100 A | Analog | ACS37220 | |||||
Allegro MicroSystems | Current Sensor | Board(s) | 13.3 mV/A | Analog | ACS37220 | -150 A | 150 A | ||||
Allegro MicroSystems | Current Sensor | Board(s) | 10 mV/A | 200 A | Analog | ACS37220 | |||||
Allegro MicroSystems | Current Sensor | Board(s) | 8.8 mV/A | Analog | ACS37220 | -150 A | 150 A | 3.3 V | Board(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.28 | |
| 10 | $ 55.36 | |||
| 25 | $ 51.56 | |||
| 100 | $ 49.00 | |||
Description
General part information
ACS37220 Series
ACS37220 - Current Sensor Sensor Evaluation Board
Documents
Technical documentation and resources
