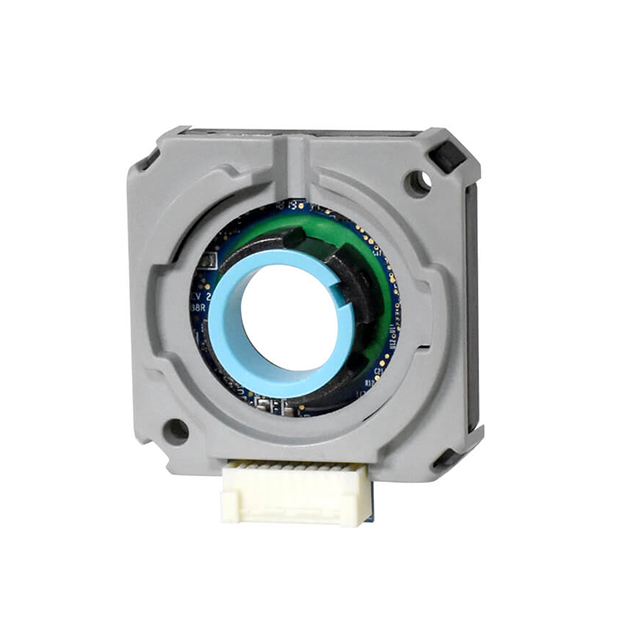

AMT133Q-V

Active

CUI Devices

KIT, AMT133Q, INCREMENTAL ENCODE

Search across all available documentation for this part.

Active

CUI Devices

KIT, AMT133Q, INCREMENTAL ENCODE

Technical Specifications

Parameters and characteristics for this part

Specification	AMT133Q-V

Actuator Type	Open Center
Built in Switch	False
Detent	False
Encoder Type	Incremental
Mounting Type	Chassis Mount, Motors
Orientation	Right Angle
Output Type	Quadrature Line Driver with Index (Incremental)
Pulses per Revolution	Programmable
Termination Style	Connector
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Actuator Type	Encoder Type	Orientation	Termination Style	Built in Switch	Output Type	Pulses per Revolution	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Detent
CUI Devices AMT133Q-V	Open Center	Incremental	Right Angle	Connector		Quadrature Line Driver with Index (Incremental)	Programmable	4.5 V	5.5 V	Chassis Mount Motors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Incremental Programmable Quadrature Line Driver with Index (Incremental) Right Angle
