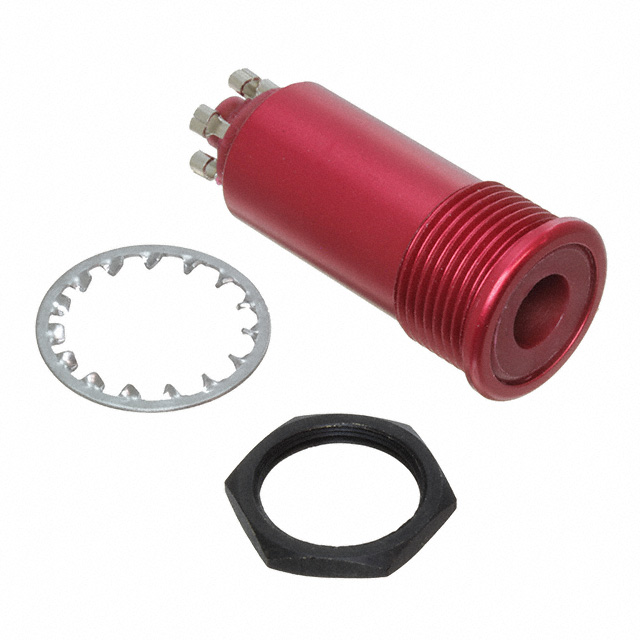

TJT-105
ActiveAmphenol NEXUS Technologies
TELEPONE JACK PANEL MOUNT THREAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TJT-105
ActiveAmphenol NEXUS Technologies
TELEPONE JACK PANEL MOUNT THREAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TJT-105 |
|---|---|
| Actual Diameter [diameter] | 0.285 " |
| Actual Diameter [diameter] | 7.24 mm |
| Body Color | Red |
| Connector Type | Phone Jack |
| Contact Material | Beryllium Copper |
| Contact Material - Plating [custom] | Nickel |
| Gender | Female |
| Housing Material | Plastic |
| Internal Switch(s) | False |
| Mating Length/Depth | 0.901 in |
| Mating Length/Depth | 22.89 mm |
| Number of Positions/Contacts [custom] | 5 Conductors |
| Number of Positions/Contacts [custom] | 5 |
| Shielding | Unshielded |
| Signal Lines | 5 Conductor |
| Termination | Solder Eyelet(s) |
| Thread Size | 5/8-24 UNEF-2A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.08 | |
| 10 | $ 57.89 | |||
| 25 | $ 55.66 | |||
| 50 | $ 53.81 | |||
| 100 | $ 50.84 | |||
Description
General part information
TJT-10 Series
Phone Jack 5 Conductor (TRRRS) Connector Solder Eyelet(s)
