PX0911/03/P

Active

BULGIN LIMITED

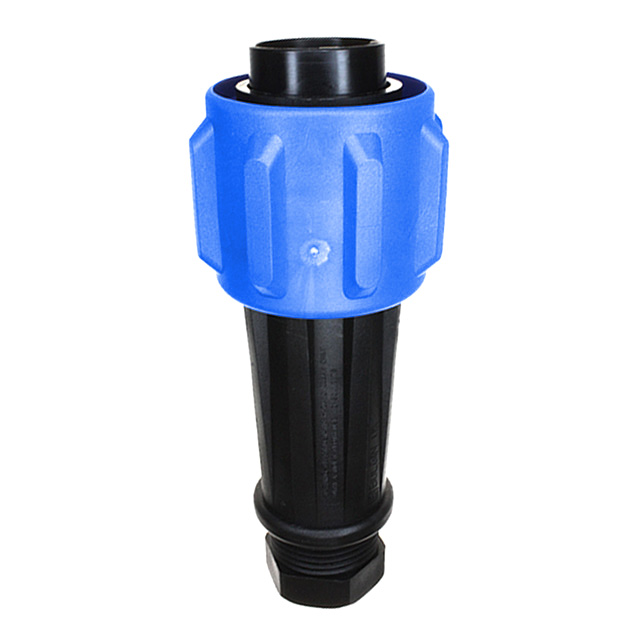

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SCREW PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PX0911/03/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SCREW PIN

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0911/03/P

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	15 mm
Cable Opening [Max] [custom]	0.591 in
Cable Opening [Min] [custom]	13 mm
Cable Opening [Min] [custom]	0.512 in
Color	Black, Blue
Connector Type	Plug, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	32 A
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

PX0911 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions	Mounting Type	Voltage Rating	Current Rating (Amps)	Features	Ingress Protection	Color	Contact Finish - Mating	Orientation	Termination	Shielding	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Connector Type	Backshell Material, Plating	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [custom]	Cable Opening [custom]	Number of Positions [custom]
BULGIN LIMITED PX0911/05/P	85 °C	-40 °C	Brass	5	Free Hanging (In-Line)	600 VAC	32 A	Backshell Coupling Nut Trailing Neutral UV Resistant	IP68 IP69K	Black Blue	Nickel	Keyed	Screw	Unshielded	Plastic	13 mm	15 mm	0.512 in	0.591 in	Male Pins Plug	Nylon Polyamide (PA)	UL94 V-0
BULGIN LIMITED PX0911/04/S/01	85 °C	-40 °C	Brass		Free Hanging (In-Line)	600 VAC	32 A	Backshell Coupling Nut UV Resistant	IP68 IP69K	Black Blue	Nickel	Keyed	Screw	Unshielded	Plastic					Female Sockets Plug	Nylon Polyamide (PA)	UL94 V-0	1	3	4	0.276 in 0.354 in	7 mm 9 mm
BULGIN LIMITED PX0911/04/P	85 °C	-40 °C	Brass		Free Hanging (In-Line)	600 VAC	32 A	Backshell Coupling Nut UV Resistant	IP68 IP69K	Black Blue	Nickel	Keyed	Screw	Unshielded	Plastic	13 mm	15 mm	0.512 in	0.591 in	Male Pins Plug	Nylon Polyamide (PA)	UL94 V-0	1	3	4
BULGIN LIMITED PX0911/04/S	85 °C	-40 °C	Brass		Free Hanging (In-Line)	600 VAC	32 A	Backshell Coupling Nut UV Resistant	IP68 IP69K	Black Blue	Nickel	Keyed	Screw	Unshielded	Plastic	13 mm	15 mm	0.512 in	0.591 in	Female Sockets Plug	Nylon Polyamide (PA)	UL94 V-0	1	3	4
BULGIN LIMITED PX0911/10/S	85 °C	-40 °C	Brass	10	Free Hanging (In-Line)	250 VAC	10 A	Backshell Coupling Nut UV Resistant	IP68 IP69K	Black Blue	Nickel	Keyed	Screw	Unshielded	Plastic	13 mm	15 mm	0.512 in	0.591 in	Female Sockets Plug	Nylon Polyamide (PA)	UL94 V-0
BULGIN LIMITED PX0911/03/P	85 °C	-40 °C	Brass		Free Hanging (In-Line)	600 VAC	32 A	Backshell Coupling Nut UV Resistant	IP68 IP69K	Black Blue	Nickel	Keyed	Screw	Unshielded	Plastic	13 mm	15 mm	0.512 in	0.591 in	Male Pins Plug	Nylon Polyamide (PA)	UL94 V-0		2	3			1
BULGIN LIMITED PX0911/07/S	85 °C	-40 °C	Brass	7	Free Hanging (In-Line)	430 VAC/DC	32 A	Backshell Coupling Nut UV Resistant	IP68 IP69K	Black Blue	Nickel	Keyed	Screw	Unshielded	Plastic	13 mm	15 mm	0.512 in	0.591 in	Female Sockets Plug	Nylon Polyamide (PA)	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.99
		20	$ 37.22
		40	$ 35.45
		60	$ 34.45
		100	$ 33.23
		260	$ 31.13
Newark	Each	1	$ 47.07
		10	$ 42.09
		25	$ 40.09
		50	$ 38.10
		100	$ 36.86
		250	$ 34.86
		500	$ 34.12

Description

General part information

PX0911 Series

The PX0911/03/P is a 3-pole male Circular Connector with pin-type nickel-plated brass contact and screw terminals. It mates with in-line flex or panel mounting versions. The positive and fast acting locking ring can be turned with a gloved hand.
