Technical Specifications
Parameters and characteristics for this part

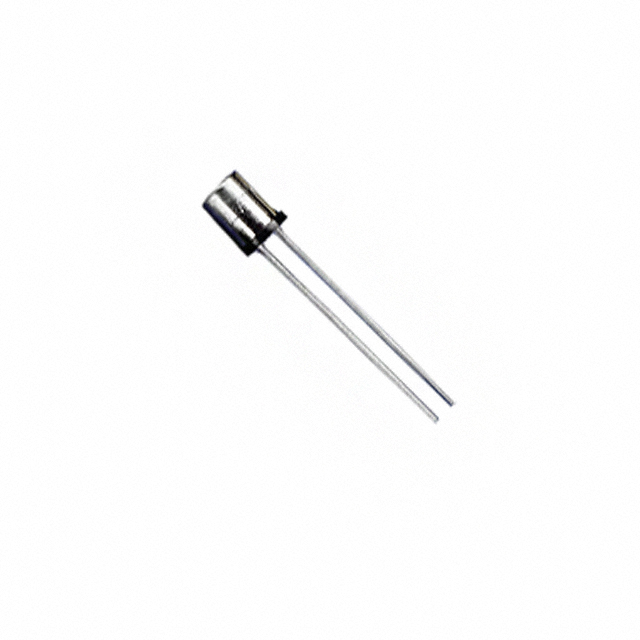

| Specification | 0278.062V |
|---|---|
| Approval Agency | CSA, UL, QPL |
| Current Rating (Amps) | 62 mA |
| DC Cold Resistance | 2.32 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 0.000115 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Vertical, Radial, Can |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 5.97 mm |
| Size / Dimension [diameter] | 0.235 " |
| Size / Dimension [z] | 7.3 mm |
| Size / Dimension [z] | 0.287 " |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0278.062 Series
Developed originally for the U.S. Space Program, MICRO™ fuse provides reliability in a compact design. The MICRO™ fuse is available in plug–in or radial lead styles and a complete range of ampere ratings from 1/500 to 5A to suit a wide variety of design needs.
