09300482295

Active

HARTING Technology Group

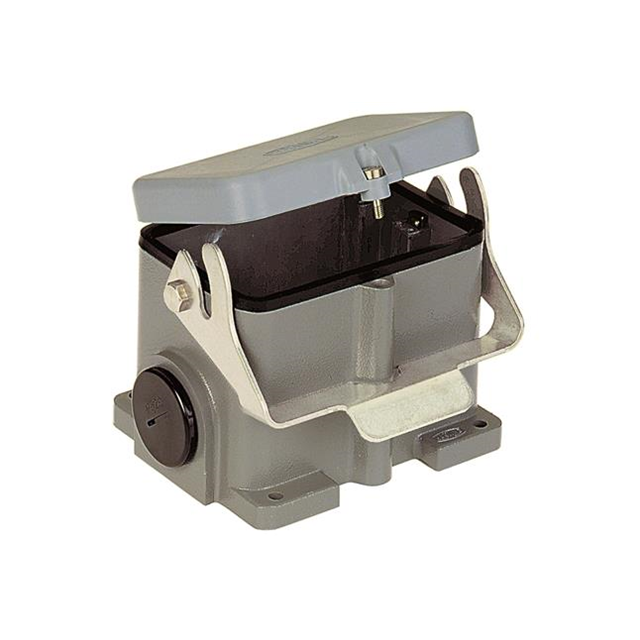

HAN B BASE SURFACE LC 1 LEVER METAL COVE ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN B BASE SURFACE LC 1 LEVER METAL COVE ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09300482295

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	48 B
Size / Dimension [x]	141 mm
Size / Dimension [x]	5.551 in
Size / Dimension [y]	120 mm
Size / Dimension [y]	4.724 in
Size / Dimension [z]	3.898 in
Size / Dimension [z]	99 mm
Style	Side Entry
Thread Size	PG29

Part	Connector Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Ingress Protection	Style	Housing Material	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size	Thread Size	Housing Color
HARTING Technology Group 09300482295	Base - Box Mount	141 mm	5.551 in	120 mm	4.724 in	3.898 in	99 mm	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Locking Clip (1) on Base Bottom	48 B	PG29	Gray
HARTING Technology Group 09300482296	Base - Box Mount	141 mm	5.551 in	120 mm	4.724 in	3.898 in	99 mm	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Locking Clip (1) on Base Bottom	48 B	PG36	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry PG29 48B IP65 - Dust Tight, Water Resistant
