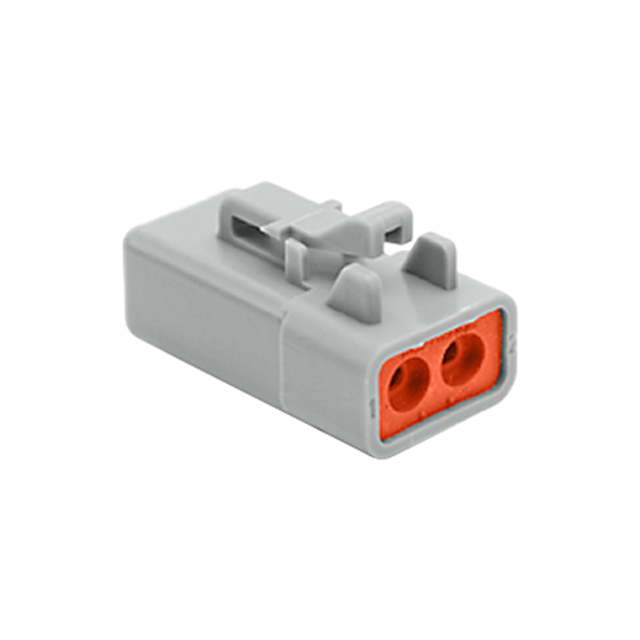

ATP06-2S

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Family +1

ATP06-2S

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 2POS

Deep-Dive with AI

DocumentsDatasheet A Series Family +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP06-2S

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

ATP06-2S Series

Part	Contact Type	Insulation Material	Color	Features	Contact Termination	Number of Positions	Mounting Type	Connector Type	Number of Rows	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Cable Termination	Wire Type	Wire Gauge [Max]	Wire Gauge [Min]
Amphenol Sine Systems Corp ATP06-2S-RD01BK	Female Socket	Thermoplastic	Black	IP67 Reduced Wire Seals Sealed	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S-SR02BK	Female Socket	Thermoplastic	Black	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S-EC01	Female Socket	Thermoplastic	Gray		Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C	Contacts Not Included
Amphenol Sine Systems Corp ATP06-2S-SR01BK	Female Socket	Thermoplastic	Black	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S-KIT01	Female Socket		Gray	Wedge Lock		2	Free Hanging (In-Line)	Plug	1	Latch Lock				Crimp	Discrete	14 AWG	12 AWG
Amphenol Sine Systems Corp ATP06-2S-MM01	Female Socket	Thermoplastic	Gray	Cap (Cover) IP68 IP69K Reduced Wire Seals	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S	Female Socket	Thermoplastic	Gray	Sealed	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C	Contacts Not Included
Amphenol Sine Systems Corp ATP06-2S-SR01	Female Socket	Thermoplastic	Gray	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S-SR02	Female Socket	Thermoplastic	Gray	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.26
		10	$ 1.97
		25	$ 1.89
		50	$ 1.84
		100	$ 1.76
		250	$ 1.59
		500	$ 1.47
		1000	$ 1.26
		2500	$ 1.17

Description

General part information

ATP06-2S Series

2 Rectangular Connectors - Housings Plug Gray

Documents

Technical documentation and resources

Datasheet

A Series Family

Datasheet

ATP Series

Datasheet
