SS-6466-NF

Active

BEL MAGNETIC SOLUTIONS

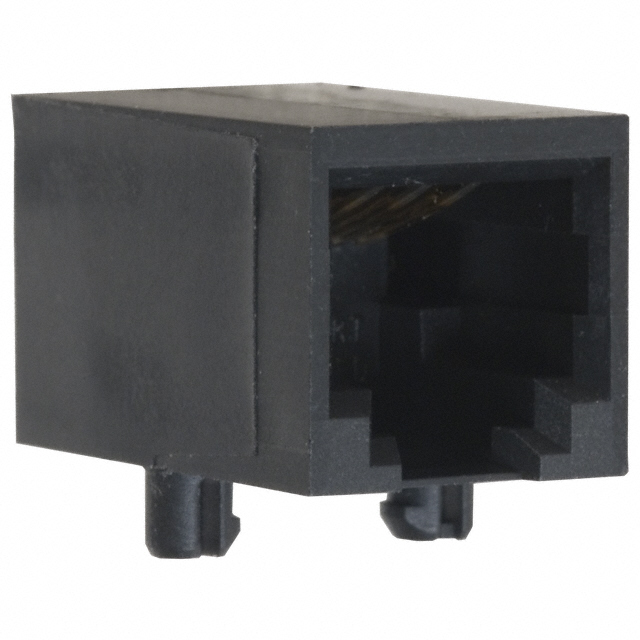

CONN TEL/TELC F 6 POS 2.54MM SLDR RA TH 6TERM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN TEL/TELC F 6 POS 2.54MM SLDR RA TH 6TERM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SS-6466-NF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Number of Rows	Housing Material	Number of Positions/Contacts	LED Color	Shielding	Orientation	Mounting Type	Contact Finish	Termination	Tab Direction	Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Contact Finish Thickness	Contact Finish Thickness	Features
BEL MAGNETIC SOLUTIONS SS-6466-NF	1	Thermoplastic	6p6c (RJ11 RJ12 RJ14 RJ25)	Does Not Contain LED	Unshielded	90 °	Through Hole	Gold	Solder	Down	Copper Alloy	Jack	85 °C	-40 °C	1	0.76 Ám	30 Áin
BEL MAGNETIC SOLUTIONS SS-6466-NF-OST	1	Thermoplastic	6p6c (RJ11 RJ12 RJ14 RJ25)	Does Not Contain LED	Unshielded	90 °	Through Hole	Gold	Solder	Down	Copper Alloy	Jack	85 °C	-40 °C	1	0.76 Ám	30 Áin	Board Lock Offset Latch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded
