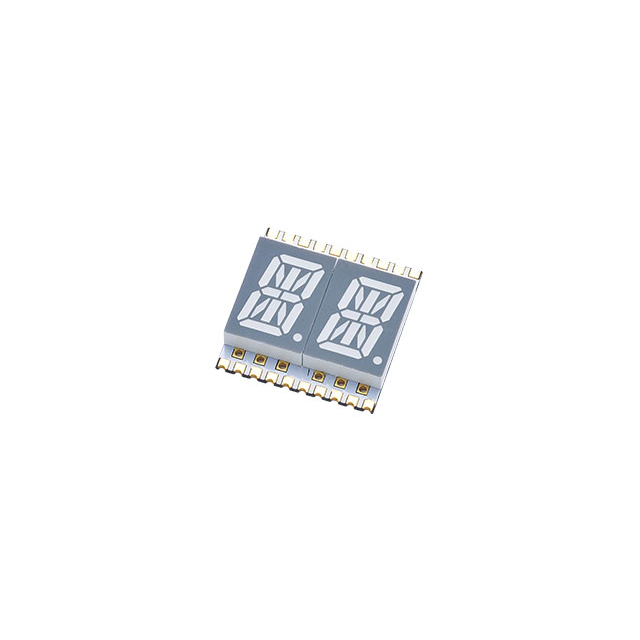

SDSCN40B2W
ActiveChromeLED
DISPLAY 14SEG 0.4" SGL BLUE 16SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDSCN40B2W
ActiveChromeLED
DISPLAY 14SEG 0.4" SGL BLUE 16SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDSCN40B2W |
|---|---|
| Color | Blue |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 14-Segment, Alphanumeric |
| Millicandela Rating | 30 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 16-SMD, No Lead |
| Power Dissipation (Max) [Max] | 120 mW |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 0.366 " |
| Size / Dimension [y] | 9.3 mm |
| Size / Dimension [z] | 19 mm |
| Size / Dimension [z] | 0.748 " |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 2.56 | |
Description
General part information
SDSCN40 Series
Display Modules - LED Character and Numeric Blue 14-Segment, Alphanumeric 1 Character Common Cathode 3.1V 20mA 0.748" H x 0.366" W x 0.157" D (19.00mm x 9.30mm x 4.00mm) 16-SMD, No Lead
