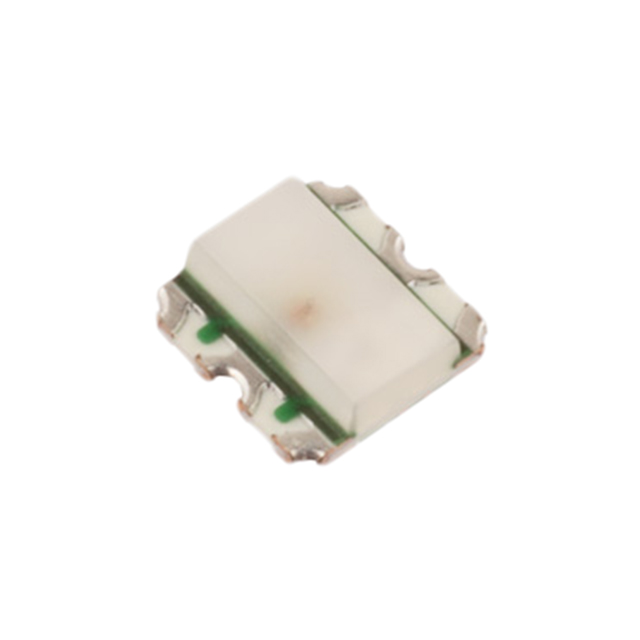

ARGB1313HS-TR
ActiveStanley Electric Co
LED RGB DIFFUSED SMD
Deep-Dive with AI
Search across all available documentation for this part.
ARGB1313HS-TR
ActiveStanley Electric Co
LED RGB DIFFUSED SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARGB1313HS-TR |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 22 mA |
| Current - Test [custom] | 12 mA |
| Current - Test [custom] | 26 mA |
| Height (Max) [Max] | 0.6 mm |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 180 mcd, 850 mcd, 450 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 2.04 mm |
| Size / Dimension [y] | 2.04 mm |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.78 | |
| 10 | $ 0.51 | |||
| 100 | $ 0.34 | |||
| 1000 | $ 0.26 | |||
| 2000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.78 | ||
| 10 | $ 0.51 | |||
| 100 | $ 0.34 | |||
| 1000 | $ 0.26 | |||
| 2000 | $ 0.25 | |||
| Tape & Reel (TR) | 4000 | $ 0.25 | ||
| 8000 | $ 0.24 | |||
| 12000 | $ 0.23 | |||
| 28000 | $ 0.23 | |||
Description
General part information
ARGB1313 Series
Red, Green, Blue (RGB) 622nm Red, 527nm Green, 473nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.1V Blue 6-SMD, No Lead
