28551.4
ActiveConta-Clip, Inc.

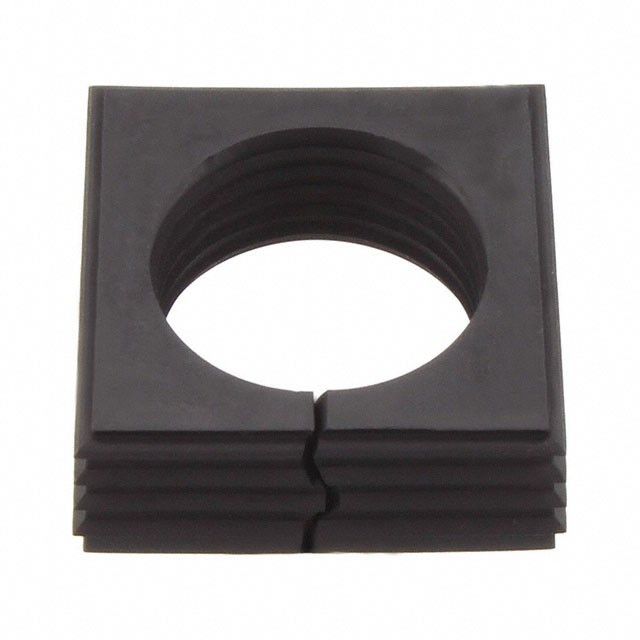

KDS LARGE SEALING SLEEVE 31MM
Deep-Dive with AI
Search across all available documentation for this part.
28551.4
ActiveConta-Clip, Inc.
KDS LARGE SEALING SLEEVE 31MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28551.4 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Black |
| Diameter - Inside [Max] [diameter] | 31 mm |
| Diameter - Inside [Max] [diameter] | 1.22 in |
| Diameter - Inside [Min] [diameter] | 1.181 " |
| Diameter - Inside [Min] [diameter] | 30 mm |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | Wires, Cable |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions | 42.8 mm |
| Panel Cutout Dimensions [custom] | 1.685 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.03 | |
| 5 | $ 2.88 | |||
| 10 | $ 2.80 | |||
| 30 | $ 2.73 | |||
| 50 | $ 2.65 | |||
| 100 | $ 2.50 | |||
Description
General part information
28551 Series
Square - 1.685" (42.80mm) Frame Grommet, Split 1.181" ~ 1.220" (30.00mm ~ 31.00mm) Black
Documents
Technical documentation and resources
No documents available
