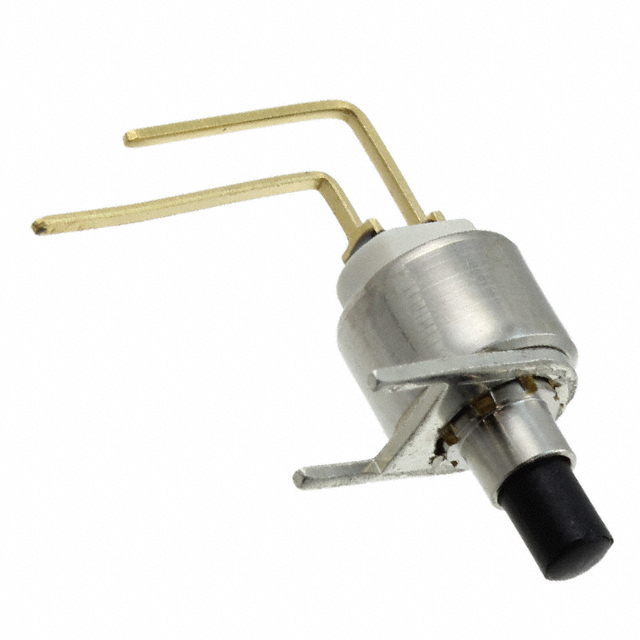

9233WWCD
ActiveAPEM
SWITCH PUSH SPST-NO 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9233WWCD
ActiveAPEM
SWITCH PUSH SPST-NO 0.1A 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9233WWCD |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 100000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.79 | |
| 10 | $ 6.72 | |||
| 25 | $ 6.34 | |||
| 50 | $ 6.06 | |||
| 100 | $ 5.80 | |||
| 300 | $ 5.40 | |||
| 500 | $ 5.23 | |||
| 1000 | $ 5.00 | |||
Description
General part information
9233 Series
Pushbutton Switch SPST-NO Standard Through Hole, Right Angle
