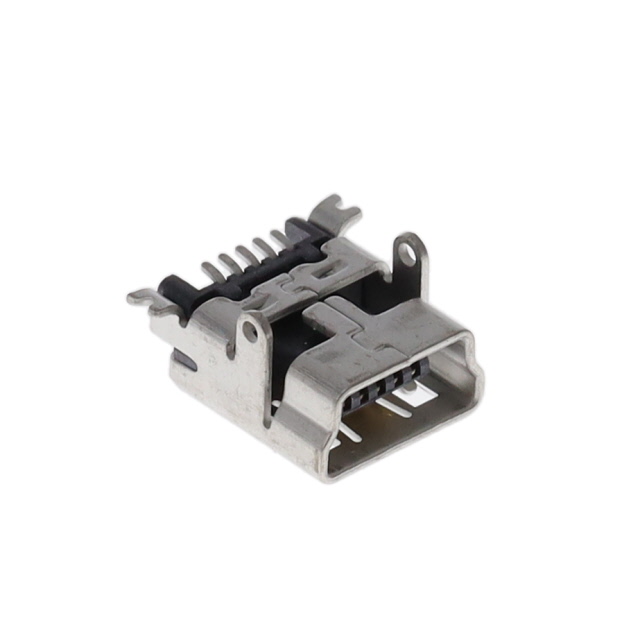

GMSB0530112C1HR
ActiveAmphenol ICC (Commercial Products)
MINI USB 5POS , B TYPE , R/A , S
Deep-Dive with AI
Search across all available documentation for this part.
GMSB0530112C1HR
ActiveAmphenol ICC (Commercial Products)
MINI USB 5POS , B TYPE , R/A , S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GMSB0530112C1HR |
|---|---|
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1 A, 1.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.40 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| Tape & Reel (TR) | 700 | $ 0.29 | ||
| 1400 | $ 0.24 | |||
| 2100 | $ 0.23 | |||
| 3500 | $ 0.22 | |||
| 4900 | $ 0.21 | |||
| 17500 | $ 0.19 | |||
| 35000 | $ 0.19 | |||
Description
General part information
GMSB053 Series
USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
