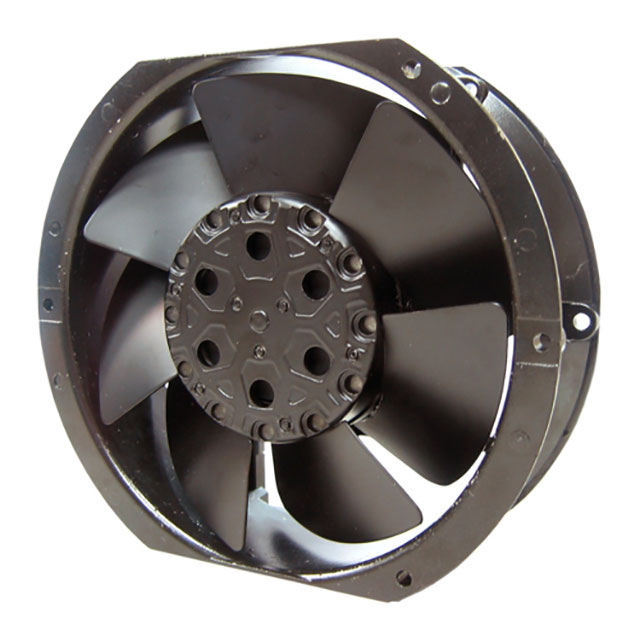

OA172SAP-22-1TB1855

Active

Orion Fans

AC FAN, 210 CFM, 3100 RPM, 42 W, 230 VAC, 58 DB, 172 MM X 51 MM, TERMINALS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMetal Fans Catalog Technical Data Sheet EN +2

OA172SAP-22-1TB1855

Active

Orion Fans

AC FAN, 210 CFM, 3100 RPM, 42 W, 230 VAC, 58 DB, 172 MM X 51 MM, TERMINALS

Deep-Dive with AI

DocumentsMetal Fans Catalog Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA172SAP-22-1TB1855

Air Flow	210 CFM
Air Flow	5.88 m³/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	58 dB(A)
Power (Watts)	42 W
RPM	3100 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	122.1 Pa
Static Pressure	0.49 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	1.2 kg
Weight	2.7 lbs
Width [y]	51 mm

OA172SAP Series

Part	RPM	Material - Frame	Weight	Weight	Power (Watts)	Air Flow	Air Flow	Termination	Width [y]	Ingress Protection	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Noise	Bearing Type	Fan Type	Voltage - Rated	Lifetime @ Temp.	Material - Blade	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Operating Temperature [Max]
Orion Fans OA172SAP-22-1TB1855	3100 RPM	Aluminum	1.2 kg	2.7 lbs	42 W	210 CFM	5.88 m³/min	2 Terminals	51 mm	IP55 - Dust Protected Water Resistant	Rectangular/Rounded	150 mm	172 mm	122.1 Pa	0.49 in H2O	58 dB(A)	Ball	Tubeaxial	230 VAC	50000 Hrs	Metal	Thermal Overload Protector (TOP)
Orion Fans OA172SAPL-11-3TB	1700 RPM	Aluminum	725.7 g	1.6 lbs	26 W	103 CFM	2.88 mł/min	2 Terminals	38.5 mm		Rectangular/Rounded	150 mm	172 mm	64.8 Pa	0.26 in H2O	44 dB	Ball	Tubeaxial	115 VAC	60000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor Thermal Overload Protector (TOP)	80 C	80 °C	-20 °C	-20 C	cURus TUV	126 VAC	103 VAC
Orion Fans OA172SAPL-22-1TBIP55	3400 RPM	Aluminum	725.7 g	1.6 lbs	28 W	228 CFM	6.38 mł/min	2 Terminals	38.5 mm	IP55 - Dust Protected Water Resistant	Rectangular/Rounded	150 mm	172 mm	216.7 Pa	0.87 in H2O	58 dB(A)	Ball	Tubeaxial	230 VAC	60000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor Thermal Overload Protector (TOP)	80 C	80 °C	-20 °C	-20 C	cURus TUV	260 VAC	160 VAC
Orion Fans OA172SAPL-22-1TB	3400 RPM	Aluminum	725.7 g	1.6 lbs	28 W	228 CFM	6.38 mł/min	2 Terminals	38.5 mm		Rectangular/Rounded	150 mm	172 mm	216.7 Pa	0.87 in H2O	58 dB(A)	Ball	Tubeaxial	230 VAC	60000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor Thermal Overload Protector (TOP)	80 C	80 °C	-20 °C	-20 C	cURus TUV	260 VAC	160 VAC
Orion Fans OA172SAP-22-1TBXCSF	3400 RPM	Aluminum	1.1 kg	2.4 lbs	38 W	293 CFM	8.2 m³/min	2 Terminals	55 mm		Rectangular/Rounded	150 mm	172 mm	224.2 Pa	0.9 in H2O	60 dB(A)	Ball	Tubeaxial	230 VAC	40000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor Salt Fog Rated	70 °C		-20 °C	-20 C	CE cURus TUV UR	253 VAC	207 VAC	0.17 A	70 °C
Orion Fans OA172SAP-11-1TBIP55	3400 RPM	Aluminum	1.2 kg	2.6 lbs	31 W	226 CFM	6.33 m³/min	2 Terminals	51 mm	IP55 - Dust Protected Water Resistant	Rectangular/Rounded	150 mm	172 mm	196.8 Pa	0.79 in H2O	58 dB(A)	Ball	Tubeaxial	115 VAC	40000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor Thermal Overload Protector (TOP)	70 °C		-20 °C	-20 C	cURus TUV	126 VAC	103 VAC	0.25 A	70 °C
Orion Fans OA172SAP-11-2TB	2400 RPM	Aluminum	1.2 kg	2.6 lbs	20 W	170 CFM	4.76 m³/min	2 Terminals	51 mm		Rectangular/Rounded	150 mm	172 mm	122.1 Pa	0.49 in H2O	42 dB	Ball	Tubeaxial	115 VAC	60000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor	70 °C		-20 °C	-20 C	cURus TUV	130 VAC	80 VAC		70 °C
Orion Fans OA172SAP-22-1WB	3200 RPM	Aluminum	1.2 kg	2.6 lbs	35 W	235 CFM	6.58 m³/min	2 Wire Leads	51 mm		Rectangular/Rounded	150 mm	172 mm	174.4 Pa	0.7 in H2O	52 dB	Ball	Tubeaxial	230 VAC	60000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor	70 °C		-20 °C	-20 C	cURus TUV	260 VAC	160 VAC		70 °C
Orion Fans OA172SAPL-11-1TB	3400 RPM	Aluminum	725.7 g	1.6 lbs	28 W	228 CFM	6.38 mł/min	2 Terminals	38.5 mm		Rectangular/Rounded	150 mm	172 mm	216.7 Pa	0.87 in H2O	58 dB(A)	Ball	Tubeaxial	115 VAC	60000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor Thermal Overload Protector (TOP)	80 C	80 °C	-20 °C	-20 C	cURus TUV	126 VAC	103 VAC
Orion Fans OA172SAP-11-1TBXC	3300 RPM	Aluminum	997.9 g	2.2 lbs	50 W	300 CFM	8.4 mł/min	2 Terminals	51 mm		Rectangular/Rounded	150 mm	172 mm	194.3 Pa	0.78 in H2O	61 dB(A)	Ball	Tubeaxial	115 VAC	60000 Hrs	Polybutylene Terephthalate (PBT)	Capacitor Thermal Overload Protector (TOP)	70 °C	70 °C	-40 °C	-40 °C	cURus TUV	125 VAC	100 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 60.38
Newark	Each	1	$ 78.66
		1000	$ 72.11

Description

General part information

OA172SAP Series

Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 210.0 CFM (5.88m³/min) 2 Terminals
