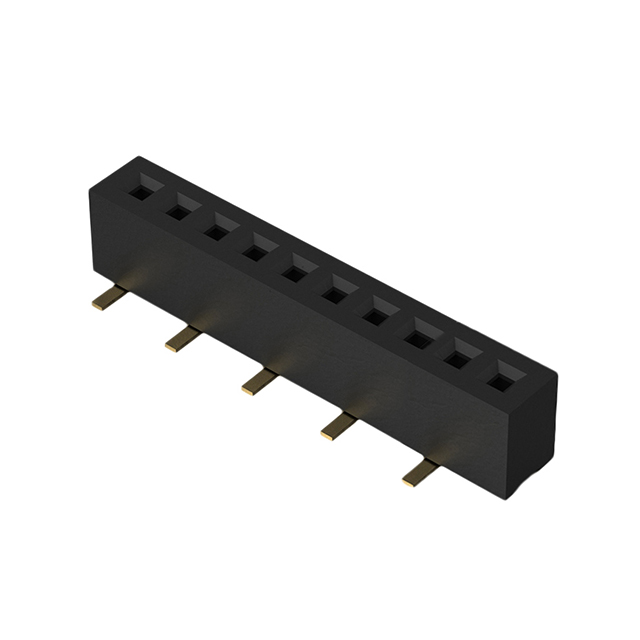

BC070-10-A-1-L-C
ActiveGCT
10POS 1.0MM PITCH SOCKET, SIL, S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC070-10-A-1-L-C
ActiveGCT
10POS 1.0MM PITCH SOCKET, SIL, S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BC070-10-A-1-L-C |
|---|---|
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.93 | |||
| 100 | $ 0.79 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.67 | |||
| Digi-Reel® | 1 | $ 1.09 | ||
| 10 | $ 0.93 | |||
| 100 | $ 0.79 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.67 | |||
| Tape & Reel (TR) | 3000 | $ 0.62 | ||
| 6000 | $ 0.59 | |||
| 9000 | $ 0.58 | |||
| 15000 | $ 0.55 | |||
Description
General part information
BC070 Series
10 Position Receptacle, Bottom or Top Entry Connector 0.039" (1.00mm) Surface Mount Gold
