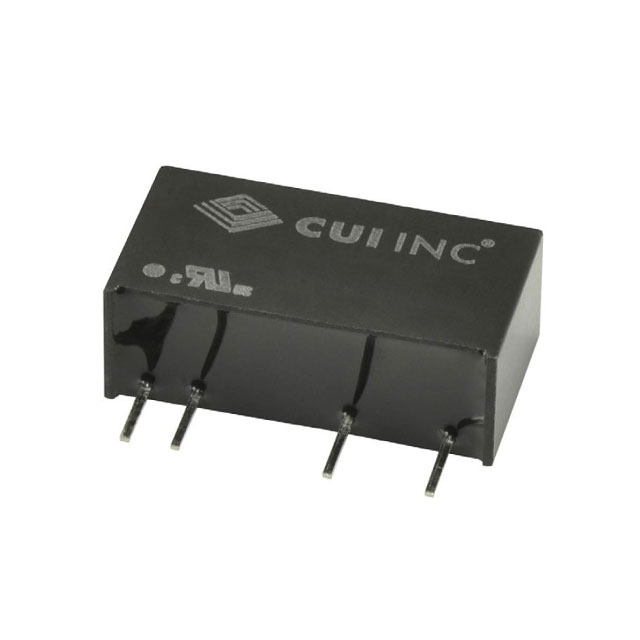

PEM1A-S5-S5-S
ActiveCUI Inc.
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
PEM1A-S5-S5-S
ActiveCUI Inc.
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PEM1A-S5-S5-S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 70 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.6 mm |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [y] | 7.2 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 25 | $ 5.23 | |
| 50 | $ 5.09 | |||
| 75 | $ 5.02 | |||
| 125 | $ 4.93 | |||
| 175 | $ 4.87 | |||
| 250 | $ 4.80 | |||
| 625 | $ 4.64 | |||
| 1250 | $ 4.53 | |||
Description
General part information
PEM1A Series
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Documents
Technical documentation and resources
No documents available
