0015921430

Active

Molex

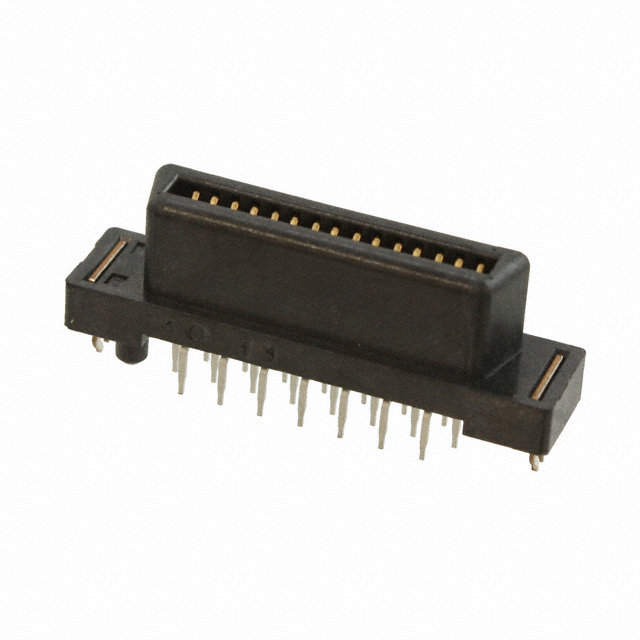

CONN RCPT 30POS VERT SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

0015921430

Active

Molex

CONN RCPT 30POS VERT SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015921430

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Board Lock
Mounting Type	Through Hole
Number of Positions	30
Number of Rows	2
Termination	Solder

001592 Series

1.27mm Pitch EBBI 50D Plug, Vertical, Blind Mate, 30 Circuits, 2.79mm PC Tail Length

Part	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Style	Features	Number of Rows	Connector Type	Termination	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Voltage Rating	Dielectric Material	Color	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Backset Spacing	Backset Spacing
Molex 0015921430	Gold	Through Hole	0.76 Ám	30 Áin	30	Outer Shroud Contacts	Board Guide Board Lock	2	Receptacle	Solder
Molex 0015923060	Gold	Free Hanging (In-Line)	0.76 Ám	30 Áin	60	Outer Shroud Contacts		2	Receptacle	IDC
Molex 0015922080	Gold	Through Hole	0.76 Ám	30 Áin	80	Center Strip Contacts	Board Guide Board Lock	2	Plug	Solder
Molex 0015922251	Gold	Panel Mount Through Hole	0.76 Ám	30 Áin	60	Board to Board D-Type Matrix	Grounding Indents Shielded		Male Pins Plug	Solder	Housing/Shell (M3)	0.05	0.05	Nickel Plated Steel	40 V	Liquid Crystal Polymer (LCP) Glass Filled	Black	Phosphor Bronze	UL94 V-0	-20 C	80 C	Signal
Molex 0015921460	Gold	Through Hole	0.76 Ám	30 Áin	60	Outer Shroud Contacts	Board Guide Board Lock	2	Receptacle	Solder
Molex 0015923040	Gold	Free Hanging (In-Line)	0.76 Ám	30 Áin	40	Outer Shroud Contacts		2	Receptacle	IDC
Molex 0015922100	Gold	Through Hole	0.76 Ám	30 Áin	100	Center Strip Contacts	Board Guide Board Lock	2	Plug	Solder
Molex 0015922030	Gold	Through Hole	0.76 Ám	30 Áin	30	Center Strip Contacts	Board Guide Board Lock	2	Plug	Solder
Molex 0015922250	Gold	Panel Mount Right Angle Through Hole	0.76 Ám	30 Áin	60	Board to Board D-Type Matrix	Board Lock Grounding Indents Shielded		Male Pins Plug	Solder	Housing/Shell (M3)	0.05	0.05		40 V	Liquid Crystal Polymer (LCP) Glass Filled	Black	Phosphor Bronze	UL94 V-0	-20 C	80 C	Signal	8.18 mm	0.322 in
Molex 0015922460	Gold	Through Hole	0.76 Ám	30 Áin	60	Center Strip Contacts	Board Guide Board Lock	2	Plug	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.88
		10	$ 5.18
		140	$ 4.12
		980	$ 3.41
		2450	$ 3.18

Description

General part information

001592 Series

1.27mm Pitch EBBI 50D Plug, Vertical, Blind Mate, 30 Circuits, 2.79mm PC Tail Length
