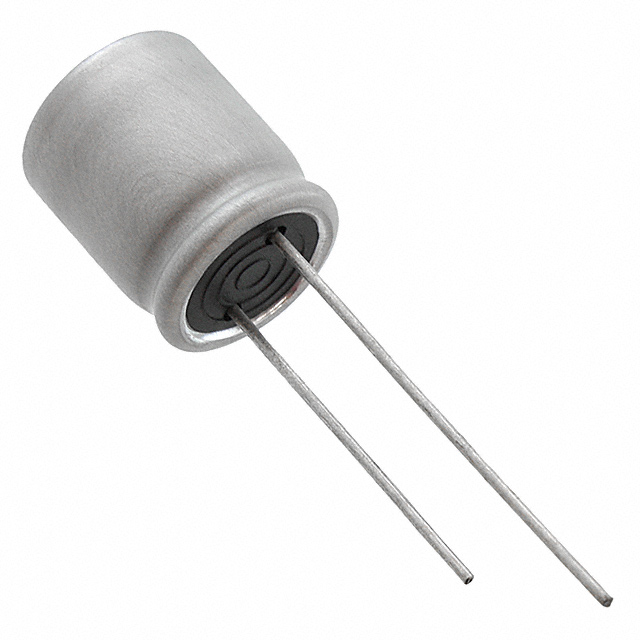

16SEPF1000M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 1000UF 20% 16V TH

Deep-Dive with AI

Search across all available documentation for this part.

16SEPF1000M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 1000UF 20% 16V TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16SEPF1000M

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	12 mOhms
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	5.4 A
Ripple Current @ Low Frequency	270 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

16SEPF Series

Part	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Ripple Current @ High Frequency	Package / Case	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Voltage - Rated	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Type	Tolerance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales 16SEPF180M+TSS	Through Hole	0.248 in	6.3 mm	5000 Hrs	3.3 A	Radial Can	0.098 in	2.5 mm	22 mOhms	16 V	180 çF	105 ░C	-55 °C	Polymer	20 %	165 mA	0.236 in	6 mm	General Purpose
Panasonic Industrial Automation Sales 16SEPF1000M+T	Through Hole	0.394 in	10 mm	5000 Hrs	5.4 A	Radial Can	0.197 in	5 mm	12 mOhms	16 V	1000 µF	105 ░C	-55 °C	Polymer	20 %	270 mA			General Purpose	13 mm	0.512 "
Panasonic Industrial Automation Sales 16SEPF150M+TSS	Through Hole	0.248 in	6.3 mm	5000 Hrs	2.59 A	Radial Can	0.098 in	2.5 mm	30 mOhms	16 V	150 µF	105 ░C	-55 °C	Polymer	20 %	129.5 mA	0.217 in	5.5 mm	General Purpose
Panasonic Industrial Automation Sales 16SEPF180M	Through Hole	0.248 in	6.3 mm	5000 Hrs	3.3 A	Radial Can	0.098 in	2.5 mm	22 mOhms	16 V	180 çF	105 ░C	-55 °C	Polymer	20 %	165 mA	0.236 in	6 mm	General Purpose
Panasonic Industrial Automation Sales 16SEPF270M	Through Hole	0.315 "	8 mm	5000 Hrs	3.3 A	Radial Can	0.138 in	3.5 mm	22 mOhms	16 V	270 µF	105 ░C	-55 °C	Polymer	20 %	165 mA	0.276 "	7 mm	General Purpose
Panasonic Industrial Automation Sales 16SEPF1000M	Through Hole	0.394 in	10 mm	5000 Hrs	5.4 A	Radial Can	0.197 in	5 mm	12 mOhms	16 V	1000 µF	105 ░C	-55 °C	Polymer	20 %	270 mA			General Purpose	13 mm	0.512 "
Panasonic Industrial Automation Sales 16SEPF150M	Through Hole	0.248 in	6.3 mm	5000 Hrs	2.59 A	Radial Can	0.098 in	2.5 mm	30 mOhms	16 V	150 µF	105 ░C	-55 °C	Polymer	20 %	129.5 mA	0.217 in	5.5 mm	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.88
		10	$ 1.41
		50	$ 1.31
		100	$ 0.86
		500	$ 0.82
		1000	$ 0.77
		2500	$ 0.73
		5000	$ 0.72

Description

General part information

16SEPF Series

1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can 12mOhm 5000 Hrs @ 105°C
