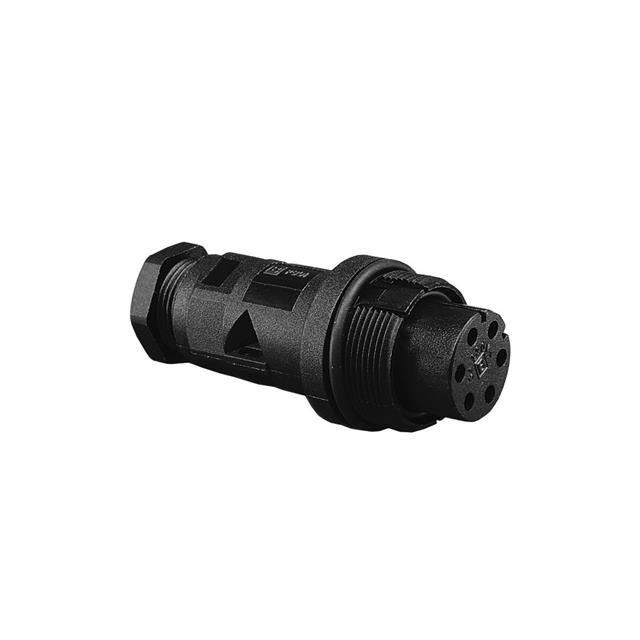

PX0801/04

Active

BULGIN LIMITED

CONN INSERT SHELL INLINE

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN INSERT SHELL INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	PX0801/04

Connector Type	Insert Shell
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included; Insert Not Included
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Primary Material	Plastic
Shielding	Unshielded

Part	Mounting Type	Features	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Note	Ingress Protection	Material Flammability Rating	Connector Type	Housing Color
BULGIN LIMITED PX0801/04	Free Hanging (In-Line)	Backshell	Unshielded	-20 C	70 °C	Plastic	Contacts Not Included; Insert Not Included	IP68 - Dust Tight Waterproof	UL94 V-0	Insert Shell	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Circular Connector Insert Shell Free Hanging (In-Line) Backshell
