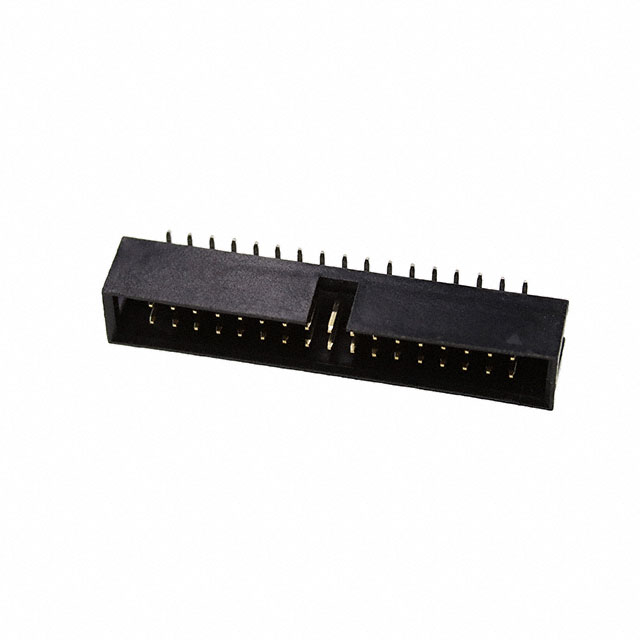

BHR-34-VSG-SMT

Active

Adam Tech

CONN HEADER SMD 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

BHR-34-VSG-SMT

Active

Adam Tech

CONN HEADER SMD 34POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-34-VSG-SMT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	10.49 mm
Insulation Height [z]	0.413 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

BHR-34 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Post	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Number of Rows	Style	Contact Material	Fastening Type	Termination	Insulation Color	Shrouding	Current Rating (Amps)	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]
Adam Tech BHR-34-VUA-ML	-40 °C	105 ░C	Square	Gold	0.13 in	3.3 mm	Male Pin	Gold	Flash	250 VAC	All	0.1 in	2.54 mm	Header	0.358 in	9.1 mm	UL94 V-0	Through Hole	Flash	2	Board to Board Cable	Brass	Push-Pull	Solder	Black	Shrouded - 4 Wall	3 A	Keying Slot	2.54 mm	0.1 in	34	Polybutylene Terephthalate (PBT) Glass Filled
Adam Tech BHR-34-VSG-SMT	-40 °C	105 ░C	Square	Tin			Male Pin	Gold		250 VAC	All	0.1 in	2.54 mm	Header			UL94 V-0	Surface Mount	Flash	2	Board to Board Cable	Brass	Push-Pull	Solder	Black	Shrouded - 4 Wall	3 A	Keying Slot	2.54 mm	0.1 in	34	Thermoplastic	10.49 mm	0.413 in
Adam Tech BHR-34-HUA-ML	-40 °C	105 ░C	Square	Gold		3.2 mm	Male Pin	Gold	Flash	350 VAC	All	0.1 in	2.54 mm	Header	0.354 in	9 mm	UL94 V-0	Through Hole Right Angle	Flash	2	Board to Board Cable	Brass	Latch Lock/Eject Hooks Long	Solder	Black	Shrouded - 4 Wall	3 A	Keying Slot	2.54 mm	0.1 in	34	Polybutylene Terephthalate (PBT) Glass Filled			0.126 in
Adam Tech BHR-34-VUA	-55 °C	105 ░C	Square	Gold	0.13 in	3.3 mm	Male Pin	Gold	Flash	250 VAC	All	0.1 in	2.54 mm	Header			UL94 V-0	Through Hole	Flash	2	Board to Board Cable	Brass	Push-Pull	Solder	Black	Shrouded - 4 Wall	3 A	Keying Slot	2.54 mm	0.1 in	34	Polybutylene Terephthalate (PBT)	8.8 mm	0.346 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.25
		10	$ 0.96
		80	$ 0.75
		440	$ 0.65
