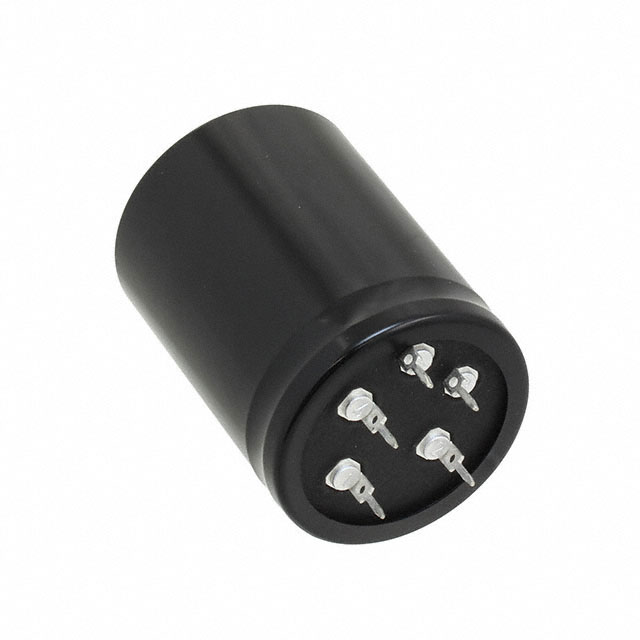

ALP22A223DD040

Active

KEMET

ELECTROLYTIC CAPACITOR, LONG LIFE, ALP22 SERIES, 22000 F, 20%, 40 V, 40 MM, 0.039 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +2

ALP22A223DD040

Active

KEMET

ELECTROLYTIC CAPACITOR, LONG LIFE, ALP22 SERIES, 22000 F, 20%, 40 V, 40 MM, 0.039 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALP22A223DD040

Applications	General Purpose
Capacitance	22000 µF
Height - Seated (Max) [Max] [z]	57 mm
Height - Seated (Max) [Max] [z]	2.244 "
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	26000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In - 5 Lead
Polarization	Polar
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Tolerance	20 %
Voltage - Rated	40 V

ALP22A Series

Part	Lifetime @ Temp.	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Mounting Type	Lead Spacing	Lead Spacing	Polarization	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALP22A103CB040	18000 Hrs	Radial Can - Solder Lug	85 °C	-40 °C	1.378 in	35 mm	General Purpose	Through Hole	15 mm	0.591 in	Polar	20 %	1.85 in	47 mm	40 V	10000 µF
KEMET ALP22A472BB063	15000 Hrs	Radial Can - Snap-In - 4 Lead	85 °C	-40 °C	1.181 inches	30 mm	General Purpose	Through Hole	10 mm	0.394 in	Polar	20 %	1.85 in	47 mm	63 V	4700 µF
KEMET ALP22A103DF100		Radial Can - Solder Lug	85 °C	-40 °C	1.575 "	40 mm	General Purpose	Through Hole	20 mm	0.787 in	Polar	20 %			100 V	10000 µF	107 mm	4.213 in
KEMET ALP22A472AB040	12000 Hrs	Radial Can - Solder Lug	85 °C	-40 °C	0.984 "	25 mm	General Purpose	Through Hole	10 mm	0.394 in	Polar	20 %	1.85 in	47 mm	40 V	4700 µF
KEMET ALP22A153DE063	26000 Hrs	Radial Can - Snap-In - 5 Lead	85 °C	-40 °C	1.575 "	40 mm	General Purpose	Through Hole	20 mm	0.787 in	Polar	20 %	3.031 in	77 mm	63 V
KEMET ALP22A223DD040	26000 Hrs	Radial Can - Snap-In - 5 Lead	85 °C	-40 °C	1.575 "	40 mm	General Purpose	Through Hole	10 mm	0.394 in	Polar	20 %	2.244 "	57 mm	40 V	22000 µF
KEMET ALP22A102DD200		Radial Can - Solder Lug	85 °C	-40 °C	1.575 "	40 mm	General Purpose	Through Hole	20 mm	0.787 in	Polar	20 %	2.244 "	57 mm	200 V	1000 µF
KEMET ALP22A472DD100		Radial Can - Solder Lug	85 °C	-40 °C	1.575 "	40 mm	General Purpose	Through Hole	20 mm	0.787 in	Polar	20 %	2.244 "	57 mm	100 V	4700 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.04
		10	$ 8.36
		72	$ 7.95
Newark	Each	1	$ 15.43
		5	$ 14.49
		10	$ 13.98
		25	$ 13.32
		50	$ 12.84
		100	$ 12.66

Description

General part information

ALP22A Series

22000 µF 40 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 5 Lead 26000 Hrs @ 85°C

Documents

Technical documentation and resources

Datasheet
