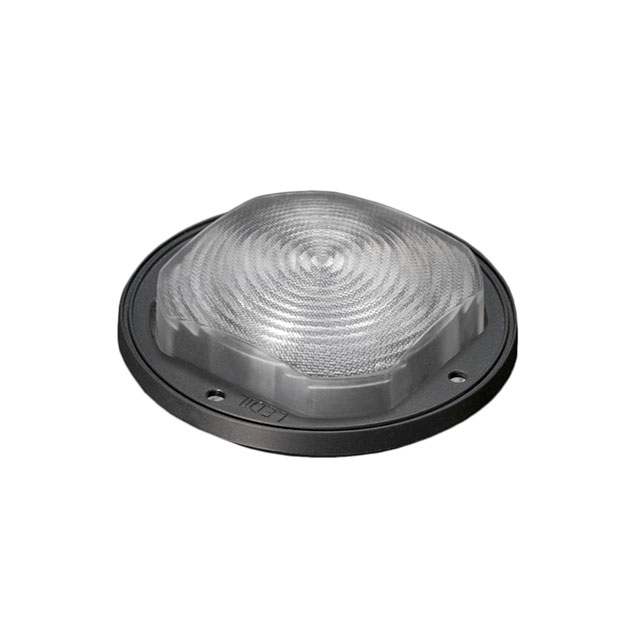

FN14720_STELLA-FRESNEL

Active

LEDiL

PACK ROUND 1 POS 90MM (D) 23MM(H)/ TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

PACK ROUND 1 POS 90MM (D) 23MM(H)/ TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	FN14720_STELLA-FRESNEL

Color	Clear
For Use With/Related Manufacturer	Bridgelux, Luminus, Tridonic, Osram, Lumileds, Cree, Philips, Citizen
Lens Size [diameter]	90 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Material	Silicone
Mounting Type	Screw
Number of LEDs	1
Optical Pattern	Fresnel Ring
Type	Lens with Integrated Mount
Viewing Angle [Max]	48 °
Viewing Angle [Min]	23 °

Part	Number of LEDs	Lens Size [diameter]	Color	Mounting Type	Lens Transparency	Type	Viewing Angle [Min]	Viewing Angle [Max]	Optical Pattern	For Use With/Related Manufacturer	Lens Style	Material
LEDiL FN14720_STELLA-FRESNEL	1	90 mm	Clear	Screw	Diffused	Lens with Integrated Mount	23 °	48 °	Fresnel Ring	Bridgelux Citizen Cree Lumileds Luminus Osram Philips Tridonic	Round with Domed Top	Silicone

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens with Integrated Mount Clear 23° ~ 48° Fresnel Ring Screw
