I342HLGG

Active

Serpac

BOX PLASTIC GRY 11.75"L X 9.98"W

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC GRY 11.75"L X 9.98"W

Technical Specifications

Parameters and characteristics for this part

Specification	I342HLGG

Area (L x W)	117 in²
Area (L x W)	755 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Watertight, Mounting Flange, PCB Supports
Height [z]	138.68 mm
Height [z]	5.46 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	11.75 in
Size / Dimension [x]	298.45 mm
Size / Dimension [y]	9.98 in
Size / Dimension [y]	253.49 mm

Part	Design	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Features	Container Type	Material Flammability Rating	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Material
Serpac I342HLGG	Hinged Door Lid	117 in²	755 cm²	138.68 mm	5.46 in	Mounting Flange PCB Supports Watertight	Box	UL94 V-0	IP67 NEMA 4	9.98 in	11.75 in	253.49 mm	298.45 mm	Gray	Plastic Polycarbonate
Serpac I342HLCG	Hinged Door Lid	117 in²	755 cm²	138.68 mm	5.46 in	Mounting Flange PCB Supports Watertight	Box	UL94 V-0	IP67 NEMA 4	9.98 in	11.75 in	253.49 mm	298.45 mm	Clear Gray	Plastic Polycarbonate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

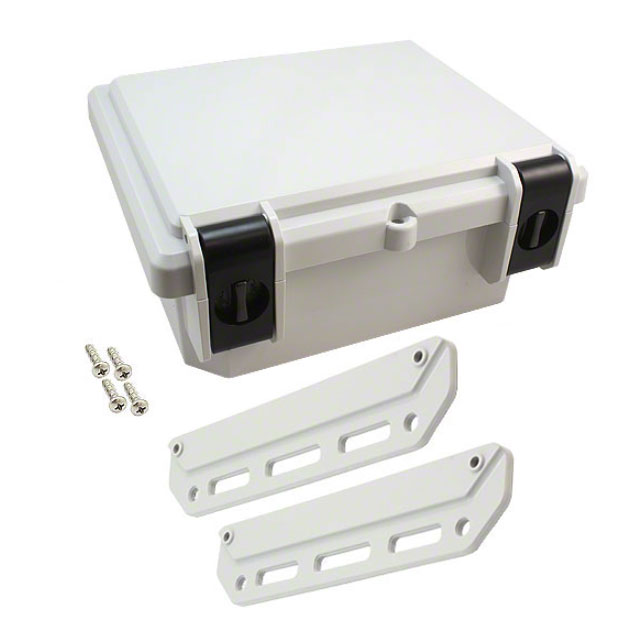

Box Plastic, Polycarbonate Gray Hinged Door, Lid 11.750" L x 9.980" W (298.45mm x 253.49mm) X 5.460" (138.68mm)

Technical documentation and resources

No documents available
