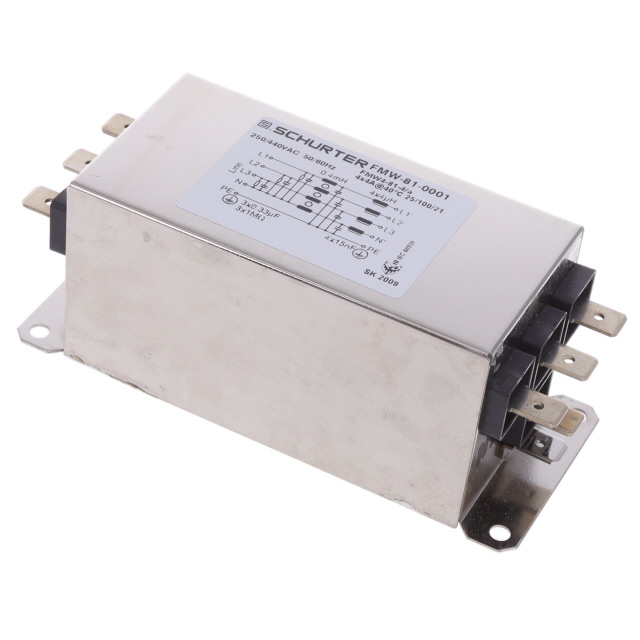

FMW-81-0001

Active

SCHURTER Inc.

LINE FILTER 250V/440VAC 4A CHAS

Search across all available documentation for this part.

Active

SCHURTER Inc.

LINE FILTER 250V/440VAC 4A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	FMW-81-0001

Applications	General Purpose
Approval Agency	ENEC, VDE
Configuration	Two Stage
Current	4 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance [custom]	400 µH
Inductance [custom]	4 µH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect
Voltage - Rated AC	440 V, 250 V

Part	Voltage - Rated AC	Termination Style	Operating Temperature [custom]	Configuration	Filter Type	Applications	Approval Agency	Current	Mounting Type	Inductance [custom]	Inductance [custom]	Frequency - Operating [Max]	Frequency - Operating [Min]
SCHURTER Inc. FMW-81-0001	250 V 440 V	Quick Connect	-25 °C 100 °C	Two Stage	Three Phase (Wye)	General Purpose	ENEC VDE	4 A	Chassis Mount	400 µH	4 µH	60 Hz	50 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Wye) EMC/EMI Line Filter 4 A 250V, 440V 50/60Hz Two Stage Quick Connect
