E2102S.41.02
ActivePrysmian Group

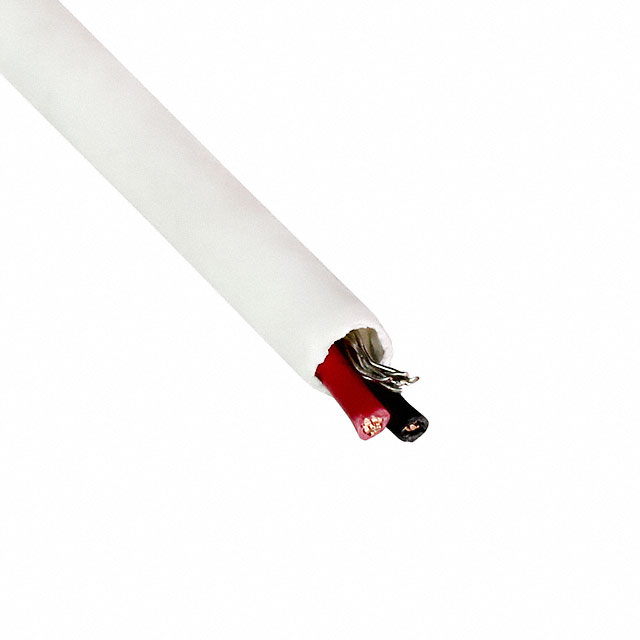

CABLE 2CON 22AWG WHT SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
E2102S.41.02
ActivePrysmian Group
CABLE 2CON 22AWG WHT SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2102S.41.02 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.128 in |
| Jacket (Insulation) Diameter [diameter] | 3.25 mm |
| Jacket (Insulation) Material | Plenum, Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m, 7.62 m |
| Length [x] | 100 ft, 25 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.83 | |
| 1 | $ 34.29 | |||
| 5 | $ 28.05 | |||
| 5 | $ 8.04 | |||
| 10 | $ 21.82 | |||
| 10 | $ 6.26 | |||
| 1000 | $ 0.16 | |||
| 2000 | $ 0.15 | |||
| 3000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 7000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
E2102S Series
2 Conductor Multi-Conductor Cable White 22 AWG Foil 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
