2260 SL002

Active

ALPHA WIRE

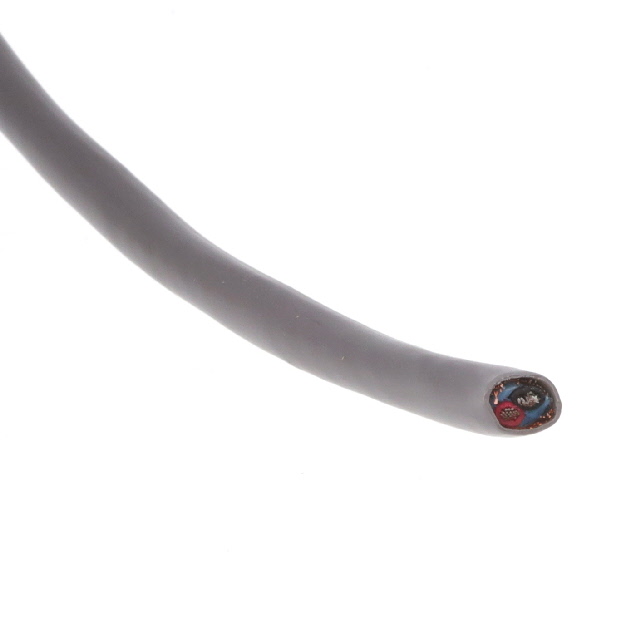

CABLE 2COND 16AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 16AWG SLATE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	2260 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Jacket (Insulation) Diameter [diameter]	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Spiral
Usage	Control, Communication
Voltage	300 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Material	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Number of Conductors	Wire Gauge	Shield Material	Shield Coverage	Jacket Color	Conductor Material	Usage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Voltage	Conductor Strand [custom]	Conductor Strand [custom]
ALPHA WIRE 2260 SL002	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-20 C	80 C	500 '	152.4 m	2	16 AWG	Copper Bare	95 %	Slate	Copper Tinned	Communication Control	Spiral	0.24 in	6.1 mm	0.02 in	0.508 mm	Multi-Conductor	300 V	30 AWG	26

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.42

General part information

2 Conductor Multi-Conductor Cable Slate 16 AWG Spiral 500.0' (152.4m)
