1411156

Active

Phoenix Contact

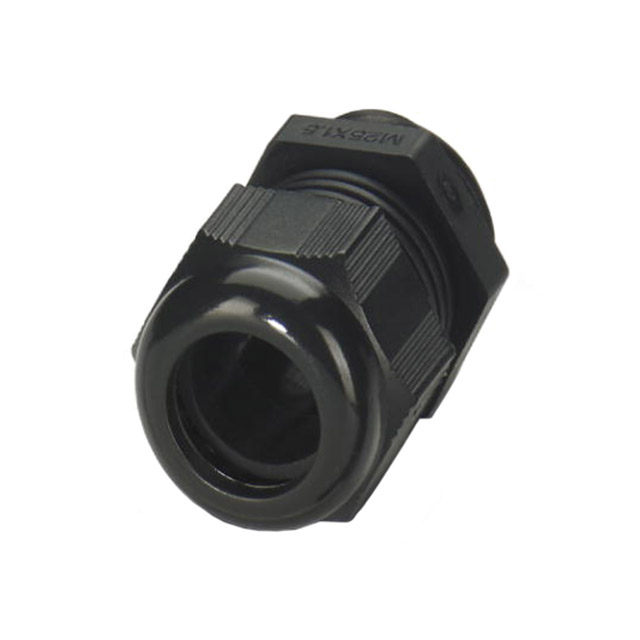

CABLE GLAND 5-10MM 3/8" NPT

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 5-10MM 3/8" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	1411156

Color	Black
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	3/8" NPT
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Includes	Ingress Protection	Thread Length	Thread Length	Color	Thread Size	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type
Phoenix Contact 1411156	100 °C	-40 °C	5 mm	0.197 in	Seal	IP66/IP68	0.591 in	15 mm	Black	3/8" NPT	Polyamide (PA) Nylon	0.394 "	10 mm	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.91

General part information

Cable Gland Polyamide (PA), Nylon 3/8" NPT Black

Technical documentation and resources
