RFTNCAA4JCCMF

Active

BULGIN LIMITED

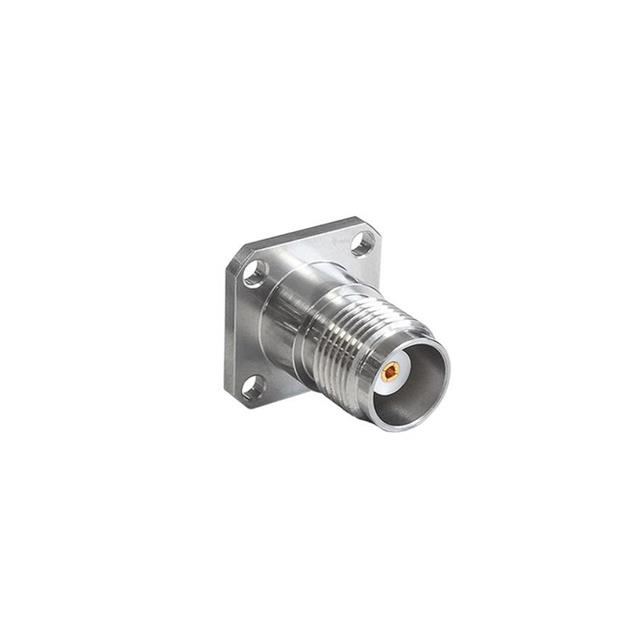

RF / COAXIAL CONNECTOR, TNCA COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFTNCAA4JCCMF

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, TNCA COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFTNCAA4JCCMF

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Connector Style	TNCA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

RFTNC Series

Part	Center Contact Material	Impedance	Number of Ports	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Housing Color	Mating Cycles	Contact Termination	Body Material	Connector Style	Mounting Feature	Voltage Rating	Shield Termination	Mounting Type	Dielectric Material	Features
BULGIN LIMITED RFTNCAA4JCCMF	Beryllium Copper	50 Ohms	1	Female Socket Jack	-65 ░C	165 °C	11 GHz	Silver	500	Solder	Stainless Steel	TNCA	Flange	500 V	Solder	Panel Mount Through Hole	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTNCAA4JFHD	Beryllium Copper	50 Ohms	1	Female Socket Jack	-65 ░C	165 °C	18 GHz	Silver	500	Compression	Stainless Steel	TNCA	Flange	500 V	Screw		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTNCAA4JCCFFGE	Beryllium Copper	50 Ohms	1	Female Socket Jack	-65 ░C	165 °C	11 GHz	Silver	500	Solder	Stainless Steel	TNCA	Flange	500 V	Solder	Panel Mount Through Hole	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Extended Insulation
BULGIN LIMITED RFTNCAA4JCCD	Beryllium Copper	50 Ohms	1	Female Socket Jack	-65 ░C	165 °C	18 GHz	Silver	500	Compression	Stainless Steel	TNCA	Flange	500 V	Screw		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTNCAA4PFHF	Beryllium Copper	50 Ohms	1	Male Pin Plug	-65 ░C	165 °C	18 GHz	Silver	500	Compression	Stainless Steel	TNCA	Flange	500 V	Screw		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTNCAA4JFHE	Beryllium Copper	50 Ohms	1	Female Socket Jack	-65 ░C	165 °C	18 GHz	Silver	500	Compression	Stainless Steel	TNCA	Flange	500 V	Screw		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTNCAA4JCCE	Beryllium Copper	50 Ohms	1	Female Socket Jack	-65 ░C	165 °C	18 GHz	Silver	500	Compression	Stainless Steel	TNCA	Flange	500 V	Screw		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTNCAA4PFHD	Beryllium Copper	50 Ohms	1	Male Pin Plug	-65 ░C	165 °C	18 GHz	Silver	500	Compression	Stainless Steel	TNCA	Flange	500 V	Screw		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTNCAA4PFHE	Beryllium Copper	50 Ohms	1	Male Pin Plug	-65 ░C	165 °C	18 GHz	Silver	500	Compression	Stainless Steel	TNCA	Flange	500 V	Screw		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTNCAA4JCCF	Beryllium Copper	50 Ohms	1	Female Socket Jack	-65 ░C	165 °C	18 GHz	Silver	500	Compression	Stainless Steel	TNCA	Flange	500 V	Screw		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 53.37
Newark	Each	1	$ 77.02

Description

General part information

RFTNC Series

TNCA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
