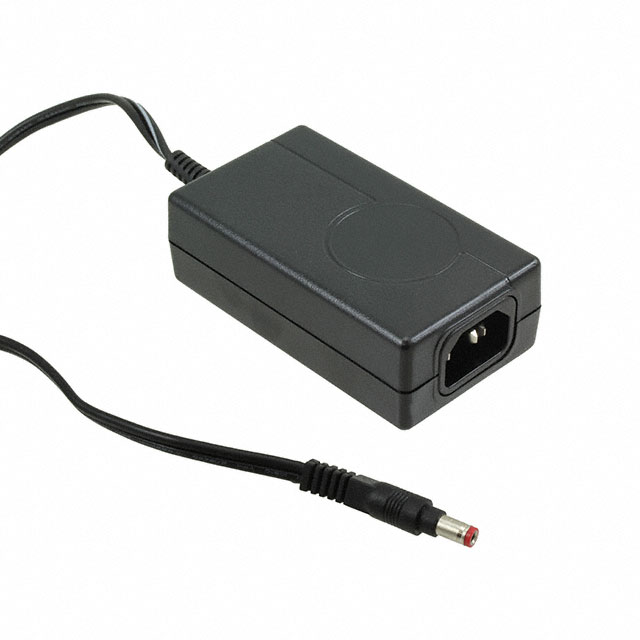

TE30A4803F01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 48V 30W
Deep-Dive with AI
Search across all available documentation for this part.
TE30A4803F01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 48V 30W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TE30A4803F01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CB, CE, DEMKO |
| Cord Length | 1.45 m |
| Cord Length | 57 " |
| Current - Output (Max) [Max] | 630 mA |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 30 W |
| Region Utilized | International |
| Size / Dimension [x] | 95.5 mm |
| Size / Dimension [x] | 3.76 in |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [z] | 31 mm |
| Size / Dimension [z] | 1.22 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 48 V |
| Weight | 0.551 lb |
| Weight | 249.93 g |
TE30A4803 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Output Connector [diameter] | Output Connector [x] | Output Connector | Region Utilized | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Input Connector | Input Type | Form | Cord Length | Cord Length | Polarization | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output (Max) [Max] | Weight | Weight | Approval Agency | Applications | Voltage - Output | No Load Power Consumption | Power (Watts) | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SL POWER / Advanced Energy | -20 C | 40 °C | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | North America | 3.78 " | 33.6 mm | 96 mm | 2.17 in | 55 mm | 1.32 in | NEMA 1-15P | Fixed Blade | Wall Mount (Class II) | 1.45 m | 57 " | Positive Center | 90 VAC | 264 VAC | 630 mA | 0.551 lb | 249.93 g | CB CE DEMKO UL | ITE (Commercial) | 48 V | 100 mW | 30 W | Level VI |
SL POWER / Advanced Energy | -20 C | 40 °C | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | International | 3.76 in | 31 mm | 95.5 mm | 2.13 in | 54 mm | 1.22 in | IEC 320-C8 | Cord | Desktop (Class II) | 1.45 m | 57 " | Positive Center | 90 VAC | 264 VAC | 630 mA | 0.551 lb | 249.93 g | CB CE CSA UL | ITE (Commercial) | 48 V | 100 mW | 30 W | Level VI |
SL POWER / Advanced Energy | -20 C | 40 °C | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | North America | 3.78 " | 33.6 mm | 96 mm | 2.17 in | 55 mm | 1.32 in | NEMA 1-15P Multi-Blade | Fixed Blade Multi-Blade | Wall Mount (Class II) | 1.45 m | 57 " | Positive Center | 90 VAC | 264 VAC | 630 mA | 0.551 lb | 249.93 g | CB CE DEMKO UL | ITE (Commercial) | 48 V | 100 mW | 30 W | Level VI |
SL POWER / Advanced Energy | -20 C | 40 °C | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | International | 3.76 in | 31 mm | 95.5 mm | 2.13 in | 54 mm | 1.22 in | IEC 320-C14 | Cord | Desktop (Class I) | 1.45 m | 57 " | Positive Center | 90 VAC | 264 VAC | 630 mA | 0.551 lb | 249.93 g | CB CE DEMKO UL | ITE (Commercial) | 48 V | 100 mW | 30 W | Level VI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.01 | |
| 5 | $ 24.63 | |||
| 10 | $ 24.24 | |||
| 25 | $ 23.09 | |||
| 50 | $ 22.32 | |||
| 100 | $ 20.78 | |||
| 250 | $ 20.47 | |||
Description
General part information
TE30A4803 Series
48V 30 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
