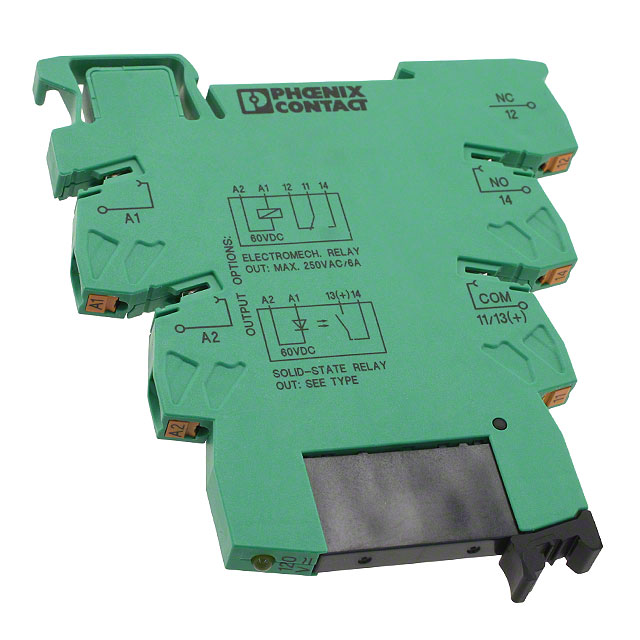

2900372

Active

Phoenix Contact

RELAY SSR 4MA 121V/132V AC/DC-IN 0.75A 253V AC-OUT

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY SSR 4MA 121V/132V AC/DC-IN 0.75A 253V AC-OUT

Technical Specifications

Parameters and characteristics for this part

Part	Load Current	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Input	Output Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Termination Style
Phoenix Contact 2900375	3 A	33 V	3 V	5 VDC	DC	CE DNV UKCA	-25 °C	60 °C	Module	DIN Rail	Spring Terminal
Phoenix Contact 2900374	0.75 A	253 V	24 V	230 VAC	AC	CE DNV UKCA	-25 °C	60 °C	Module	DIN Rail	Spring Terminal
Phoenix Contact 2900376	3 A	33 V	3 V	24 V	DC	CE DNV UKCA	-25 °C	60 °C	Module	DIN Rail	Spring Terminal
Phoenix Contact 2900372	0.75 A	253 V	24 V	120 VAC	AC	CE DNV UKCA	-25 °C	60 °C	Module	DIN Rail	Spring Terminal
Phoenix Contact 2900370	0.75 A	253 V	24 V	48 VDC	AC	CE DNV UKCA	-25 °C	60 °C	Module	DIN Rail	Spring Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.64

General part information

Solid State SPST-NO (1 Form A) Module

Technical documentation and resources
