23S2R2C

Active

Murata Power Solutions Inc.

POWER INDUCTOR (SMD), 2.2 ΜH, 2.1 A, SHIELDED, 2300 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Magnetics Selection Guide +2

23S2R2C

Active

Murata Power Solutions Inc.

POWER INDUCTOR (SMD), 2.2 ΜH, 2.1 A, SHIELDED, 2300 SERIES

Deep-Dive with AI

DocumentsDatasheet Power Magnetics Selection Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	23S2R2C

Current Rating (Amps)	2.1 A
DC Resistance (DCR)	25 mOhm
Height - Seated (Max) [Max] [z]	3.2 mm
Height - Seated (Max) [Max] [z]	0.126 in
Inductance	2.2 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	6.2 mm
Size / Dimension [x]	0.244 "
Size / Dimension [y]	5.6 mm
Size / Dimension [y]	0.22 "
Type	Wirewound

23S Series

Part	Mounting Type	Type	Package / Case	Shielding	DC Resistance (DCR)	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. 23S560C	Surface Mount	Wirewound	Nonstandard	Shielded	509 mOhm	56 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	0.5 A
Murata Power Solutions Inc. 23S101C	Surface Mount	Wirewound	Nonstandard	Shielded		100 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	370 mA	782 mOhm
Murata Power Solutions Inc. 23S100C	Surface Mount	Wirewound	Nonstandard	Shielded		10 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in		87 mOhm
Murata Power Solutions Inc. 23S180C	Surface Mount	Wirewound	Nonstandard	Shielded		18 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	880 mA	143 mOhm
Murata Power Solutions Inc. 23S2R2C	Surface Mount	Wirewound	Nonstandard	Shielded	25 mOhm	2.2 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	2.1 A
Murata Power Solutions Inc. 23S330C	Surface Mount	Wirewound	Nonstandard	Shielded		33 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	650 mA	241 mOhm
Murata Power Solutions Inc. 23S151C	Surface Mount	Wirewound	Nonstandard	Shielded	1.19 Ohm	150 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	300 mA
Murata Power Solutions Inc. 23S150C	Surface Mount	Wirewound	Nonstandard	Shielded		15 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	960 mA	131 mOhm
Murata Power Solutions Inc. 23S390C	Surface Mount	Wirewound	Nonstandard	Shielded		39 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	600 mA
Murata Power Solutions Inc. 23S221C	Surface Mount	Wirewound	Nonstandard	Shielded		220 µH	6.2 mm	5.6 mm	0.244 "	0.22 "	85 °C	-40 °C	3.2 mm	0.126 in	0.25 A	2.28 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.50
Newark	Each (Supplied on Cut Tape)	500	$ 0.60

Description

General part information

23S Series

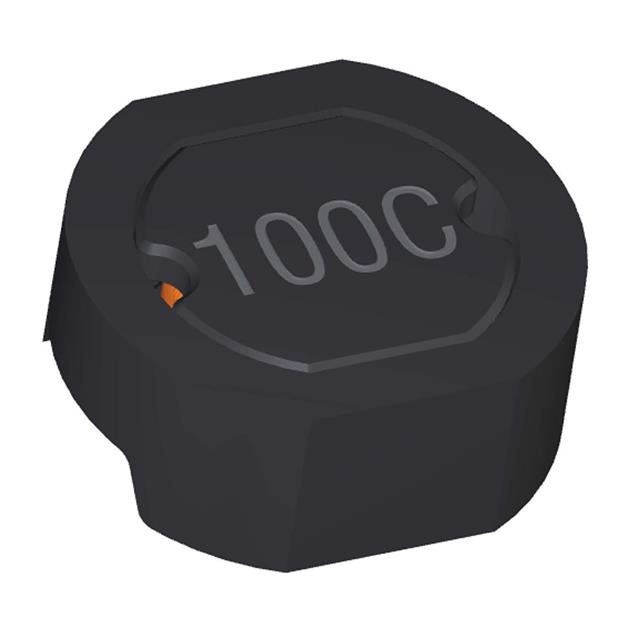

2.2 µH Shielded Wirewound Inductor 2.1 A 25mOhm Max Nonstandard
