MLX90412LLW-BAA-042-SP

Melexis Technologies NV

IC FAN DRIVER 40V 2.2A 10DFN

Search across all available documentation for this part.

Melexis Technologies NV

IC FAN DRIVER 40V 2.2A 10DFN

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90412LLW-BAA-042-SP

Current - Output	2.2 A
Function	Driver - Fully Integrated, Control and Power Stage
Grade	Automotive
Interface	I2C, PWM
Mounting Type	Wettable Flank, Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C

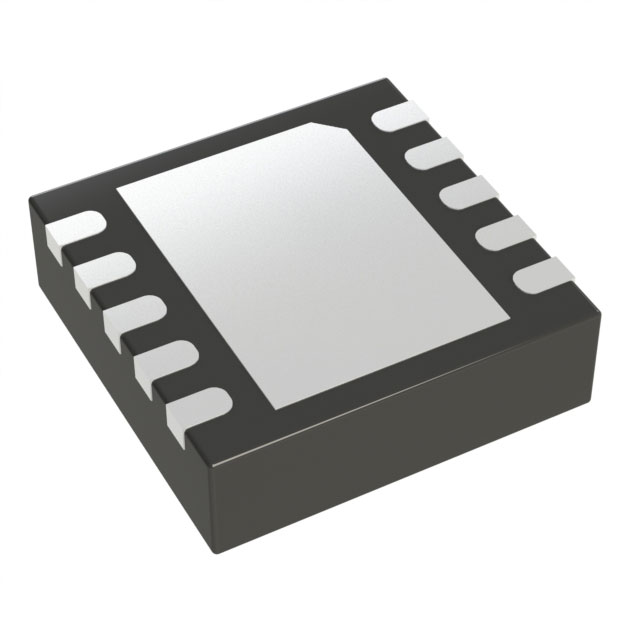

Package / Case	10-DFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	3.5 V

Part	Applications	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case	Interface	Mounting Type	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Grade
Melexis Technologies NV MLX90412KLW-BAA-022-SP	Fan Motor Driver	Driver - Fully Integrated Control and Power Stage	3.5 V	32 VDC	10-DFN (3x3)	10-DFN Exposed Pad	I2C PWM	Surface Mount Wettable Flank	2.2 A
Melexis Technologies NV MLX90412KLW-BAH-042-RE	Fan Motor Driver	Driver - Fully Integrated Control and Power Stage	3.5 V	32 VDC	10-DFN (3x3)	10-DFN Exposed Pad	I2C PWM	Surface Mount Wettable Flank	2.2 A
Melexis Technologies NV MLX90412LLW-BAA-042-SP		Driver - Fully Integrated Control and Power Stage	3.5 V	32 VDC	10-DFN (3x3)	10-DFN Exposed Pad	I2C PWM	Surface Mount Wettable Flank	2.2 A	150 °C	-40 °C	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	121	$ 1.15

General part information

Motor Driver I2C, PWM 10-DFN (3x3)
