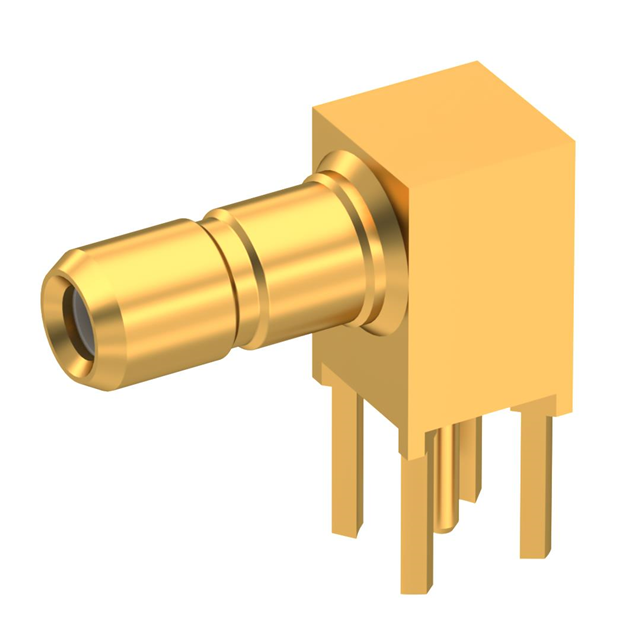

R203665000

Active

Radiall USA, Inc.

SSMB F RA SMT C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB F RA SMT C100

Technical Specifications

Parameters and characteristics for this part

Specification	R203665000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Body Material	Center Contact Plating	Fastening Type	Shield Termination	Impedance	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Frequency - Max [Max]	Center Contact Material	Contact Termination	Mating Cycles	Connector Type	Mounting Type	Number of Ports	Dielectric Material	Body Finish
Radiall USA, Inc. R203665000W	175 VDC	Brass	Gold	Snap-On	Solder	50 Ohms	SSMB	-65 ░C	165 °C	Gold	4 GHz	Beryllium Copper	Solder	500	Jack Male Pin	Through Hole Right Angle	1	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R203665000	250 VDC	Brass	Gold	Snap-On	Solder	50 Ohms	SSMB	-65 ░C	165 °C	Gold	4 GHz	Beryllium Copper	Solder	500	Female Socket Plug	Through Hole Right Angle	1	Polytetrafluoroethylene (PTFE)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Plug, Female Socket 50 Ohms Through Hole, Right Angle Solder
